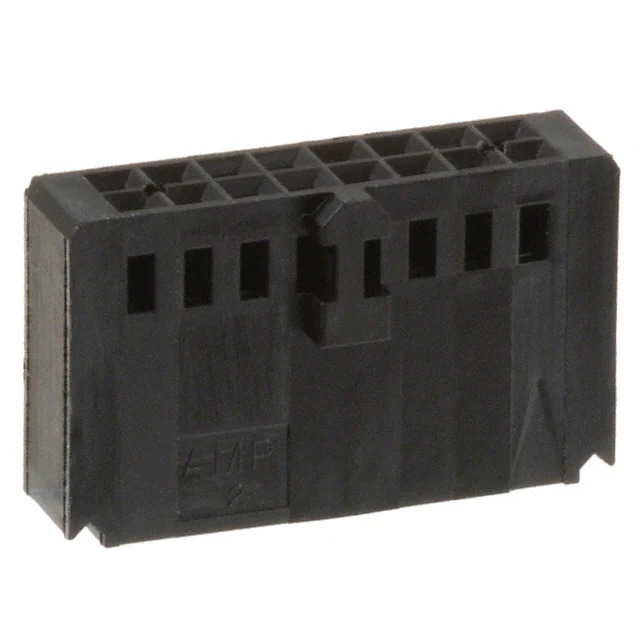

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features Polarizing Key
Temperature Range - Operating -65°C ~ 105°C
Note Contacts Not Included
Base Product Number 102387
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365741-102387-3
Ultra Librarian 3D Model Ultra Librarian 102387-3 CAD Model

Description

The AMPMODU Mod IV series rectangular connector housing from TE Connectivity AMP Connectors is a reliable component for electrical connections.

  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -65°C to 105°C
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 16
  • Number of Rows: 2
  • Polarization: Key
  • Color: Black
  • Series: AMPMODU Mod IV
