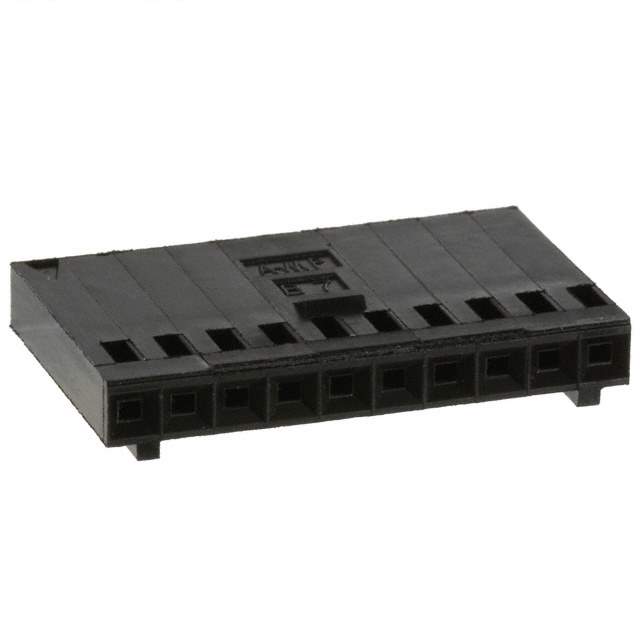

102241-8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Note Contacts Not Included
Base Product Number 102241
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names A26989,-102241-8-CSI,102241-8-ND,2266-102241-8,-102241-8-SI,1022418
Standard Package 1
Win Source Part Number 1018507-102241-8
Ultra Librarian 3D Model Ultra Librarian 102241-8 CAD Model

Description

The TE Connectivity AMP Connectors 102241-8 is a 10-position rectangular connector housing.

  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Contact Gender: Female Socket
  • Packaging: Bulk
