Same model may have multiple batches, images only for reference.

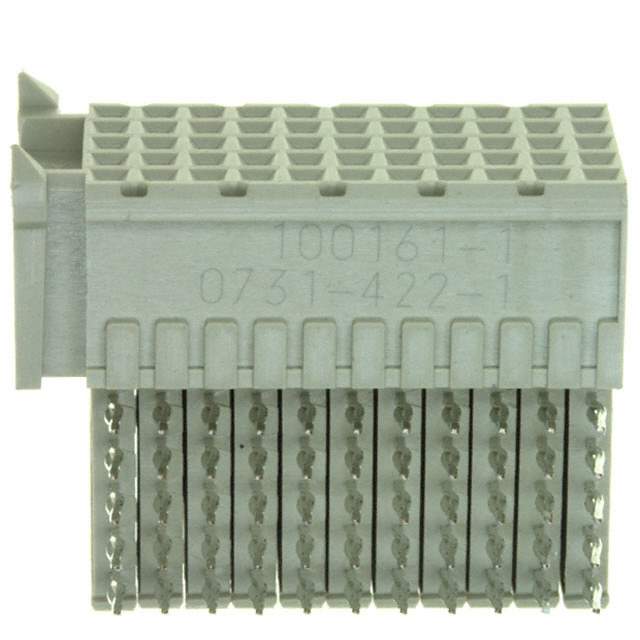

100161-1 Real Image
Same model may have multiple batches, images only for reference.

100161-1

Part No 100161-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 55POS RTANG GOLD 2MM / Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole Tube
Datasheet
100161-1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Z-PACK
Packaging Tube
Connector Type Receptacle, Female Sockets
Connector Style C 11
Number of Positions 55
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Current Rating 1.5A
Voltage Rating 500Vrms
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 769495-100161-1
Popularity Medium
Supply and Demand Status Limited
Family Name 100161
Introduction Date August 09, 2005
ECCN EAR99
Country of Origin Belgium , China , Netherlands , Poland , United States of America
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 100161-1 CAD Model

Description

The 769495-100161-1 is a Z-PACK series connector from TE Connectivity AMP Connectors.

  • Package: Tube
  • Positions: 55
  • Pitch: 0.079" (2.00mm)
  • Current Rating: 1.5A
  • Voltage Rating: 500Vrms
  • Connector Type: Receptacle
  • Sockets: Female
  • Positions Loaded: All
  • Mounting Type: Right Angle
  • Applications: Board Edge, Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Operating Temperature: -55°C to 125°C
