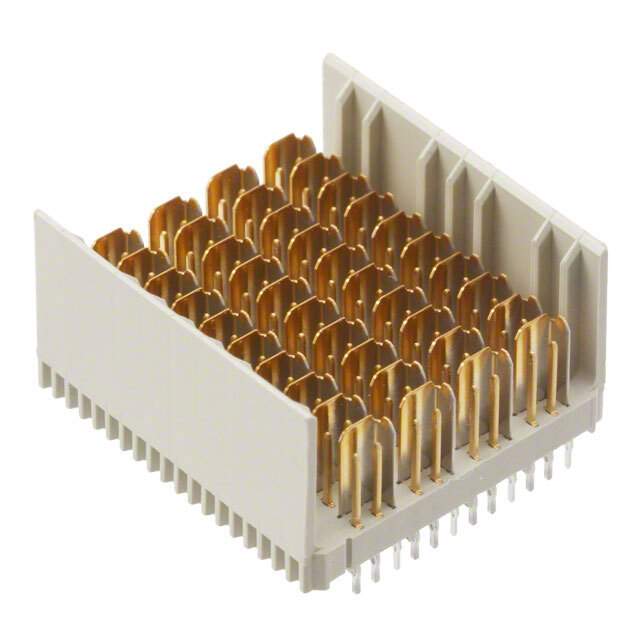

6469002-1

Name: 6469002-1
Brand: TE Connectivity
SKU: 764473
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6469002-1
Manufacturer	TE Connectivity
Catalog	Backplane Connectors
Description	CONN HEADER 80POS 8ROW VERT HM
Datasheet	6469002-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	Z-PACK HM-Zd
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins and Blades
Connector Style	High Speed
Number of Positions	120
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	8
Number of Columns	10
Mounting Style	Through Hole
Termination	Press-Fit
Contact Layout, Typical	80 Single Signal, 40 Ground
Contact Finish	Gold
Contact Finish Thickness	30μin (0.76μm)
Current Rating	0.700A
Material Flammability Rating	UL94 V-0
Operating Temperature Range	-65°C ~ 105°C
Voltage Rating	250V
Win Source Part Number	764473-6469002-1
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 6469002-1 CAD Model

Description

The 764473-6469002-1 is a Z-PACK HM-Zd series connector manufactured by TE Connectivity AMP Connectors.

Mounting: Through Hole
Pitch: 0.098" (2.50mm)
Operating Temperature: -65°C ~ 105°C
Connector Type: Male Header
Positions: 120 Loaded
Rows: 8
Termination: Press-Fit
Contact Finish: Gold, 30μin (0.76μm)
Usage: Backplane
Columns: 10
Contact Layout: Typical (80 Signal, 40 Ground)
Supply/Demand Status: Balanced
