Same model may have multiple batches, images only for reference.

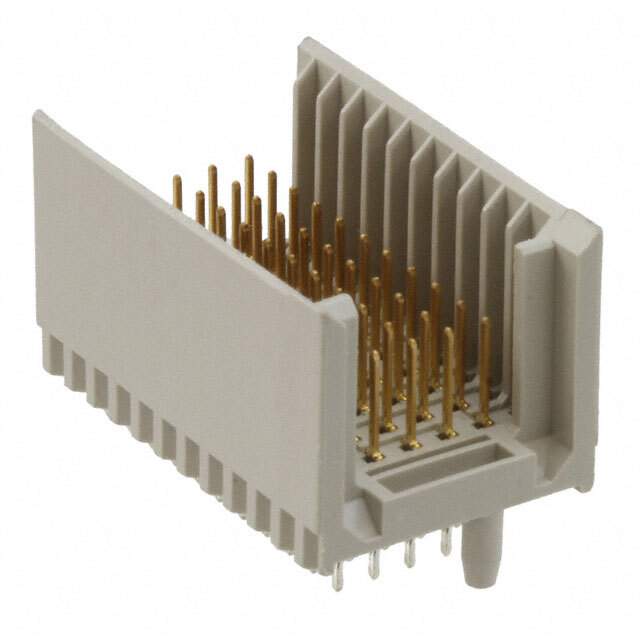

5188232-9 Real Image
Same model may have multiple batches, images only for reference.

5188232-9

Part No 5188232-9
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 55POS VERT 5ROW
Datasheet
5188232-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header, Male Pins
Connector Style C 11
Number of Positions 55
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Through Hole
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Current Rating 1.5A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C to 125°C
Features Board Guide
Win Source Part Number 1006003-5188232-9
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5188232-9 CAD Model

Description

The TE Connectivity AMP Connectors 5188232-9 is a high-quality male header connector that is designed for use in backplane applications.

  • Positions: 55
  • Pitch: 0.079" (2.00mm)
  • Voltage Rating: 500Vrms
  • Current Rating: 1.5A
  • Package: Tube/Rail
  • Termination: Press-fit
  • Popularity: Medium
  • Supply and Demand Status: Balance
