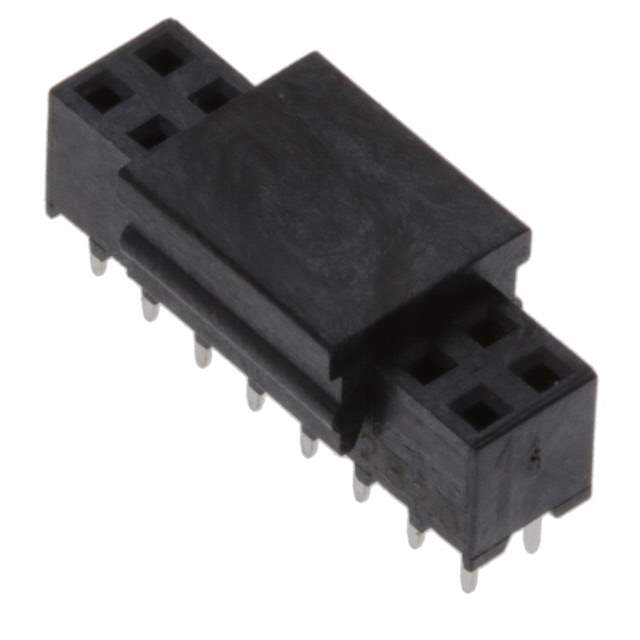

1-2314813-6 Real Image
Same model may have multiple batches, images only for reference.

1-2314813-6

Part No 1-2314813-6
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description 16P,2MM,B-B,REC,DRVT,2.0,0.38AU, / 16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series AMPMODU
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Contact Length - Post 0.079" (2.00mm)
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 2A
Voltage Rating 125V
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 12.0µin (0.30µm)
Base Product Number 2314813
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 17-1-2314813-6
Standard Package 35
Win Source Part Number 1038821-1-2314813-6
Ultra Librarian 3D Model Ultra Librarian 1-2314813-6 CAD Model

Description

The 1038821-1-2314813-6 is a 16-position board-to-board rectangular connector from TE Connectivity AMP Connectors.

  • Number of Positions: 16
  • Pitch: 0.079" (2.00mm)
  • Current Rating: 2A
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Application: Board-to-Board
  • Mounting Type: Through-Hole
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Voltage Rating: 125V
  • Temperature Range: -40°C ~ 125°C
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Packaging: Tube
  • Standard Package Quantity: 35
  • Approval: UL
  • Insulation Flammability Rating: UL94 V-0
