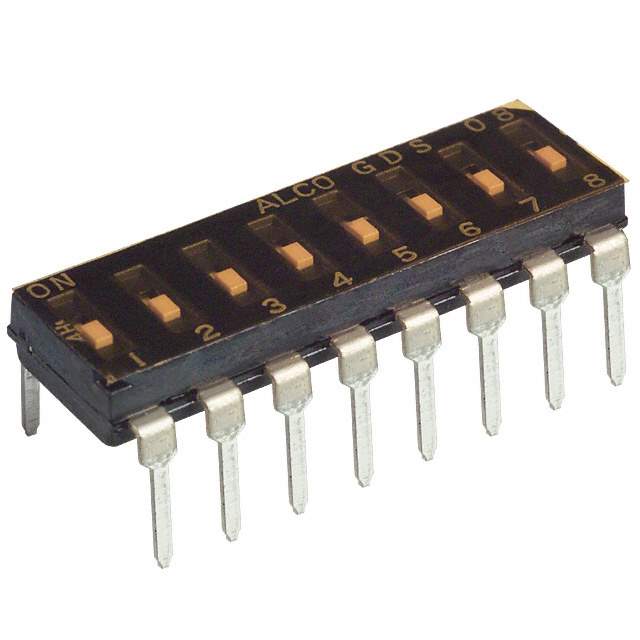

1-1825006-3 Real Image
Same model may have multiple batches, images only for reference.

1-1825006-3

Part No 1-1825006-3
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 16 Weeks
Features Dip Switch SPST Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Manufacturer TE Connectivity
Series GDS
Package Tube
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name 1825006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number Q7909015, 2266-1-1825006-3, GDS0804, 450-1342
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872709-1-1825006-3
Ultra Librarian 3D Model Ultra Librarian 1-1825006-3 CAD Model

Description

The TE Connectivity GDS Dip Switch is a SPST position through hole slide (standard) actuator switch with an operating temperature range of -30°C ~ 85°C.

  • Family Name: 1825006
  • Package: Tube
  • Estimated Production Lead Time: 16 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • Quantity per Package: 20
  • Other Part Numbers: Q7909015, 2266-1-1825006-3, GDS0804, and 450-1342.
