Same model may have multiple batches, images only for reference.

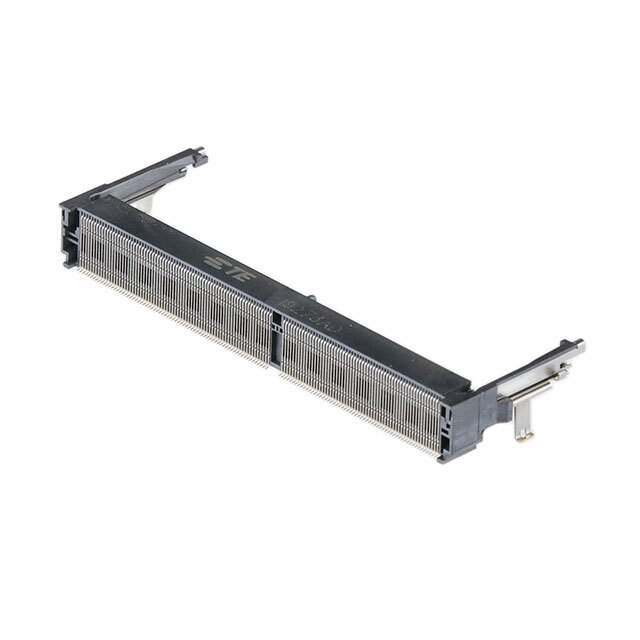

2309413-1 Real Image
Same model may have multiple batches, images only for reference.

2309413-1

Part No 2309413-1
Manufacturer TE Connectivity
Catalog Memory Connectors - Accessories
Description DDR4 SODIMM 260P 9.2H STD  /  260 Position SODIMM DDR4 SDRAM Socket Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - Inline Module Sockets
Mfr TE Connectivity AMP Connectors
Series AdvancedMC
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style SODIMM
Number of Positions 260
Memory Type DDR4 SDRAM
Mounting Type Surface Mount, Right Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 2309413
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2309413-1-SI,A126764CT,A126764TR
Standard Package 250
Win Source Part Number 962543-2309413-1
Ultra Librarian 3D Model Ultra Librarian 2309413-1 CAD Model

Description

The TE Connectivity AMP Connectors 2309413-1 is a 260-position SODIMM connector designed for DDR4 SDRAM memory modules. It features board guides and latches for secure placement and a gold contact finish with flash thickness. The connector is available in tape and reel or cut tape packaging and can be mounted on the surface or at a right angle. The 2309413-1 is part of the AdvancedMC series and has an EAR99 ECCN classification.
