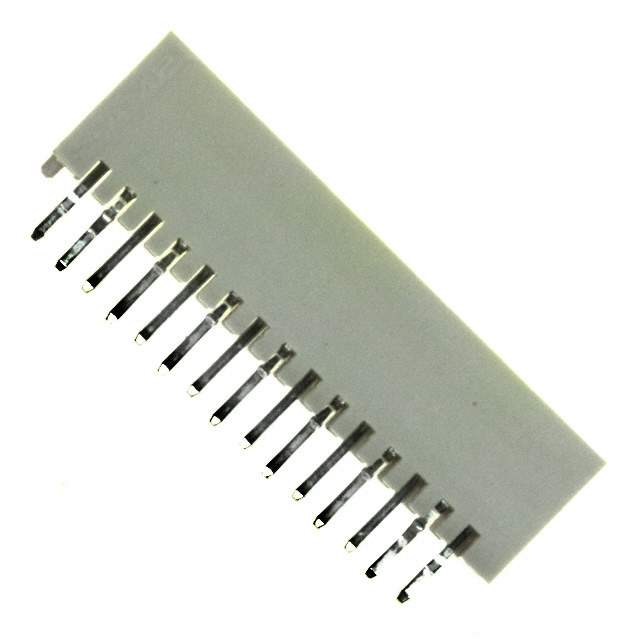

1-292207-5 Real Image
Same model may have multiple batches, images only for reference.

1-292207-5

Part No 1-292207-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 15POS VERT 1.5MM TIN
Datasheet
1-292207-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 15
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.307" (7.80mm)
Insulation Height 0.272" (6.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Win Source Part Number 1003678-1-292207-5
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1-292207-5 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a through hole, shrouded, board to cable/wire header connector with a gray insulation color.

  • Pitch-Mating: 0.059 inches (1.50mm)
  • Contact Finish-Mating: tin
  • Contact Finish-Post: tin
  • Application: General Purpose
  • Voltage Rating: 50VAC
  • Current Rating: Varies by wire gauge
  • Material Flammability Rating: UL94 V-0
  • Supply and Demand Status: Sufficient
