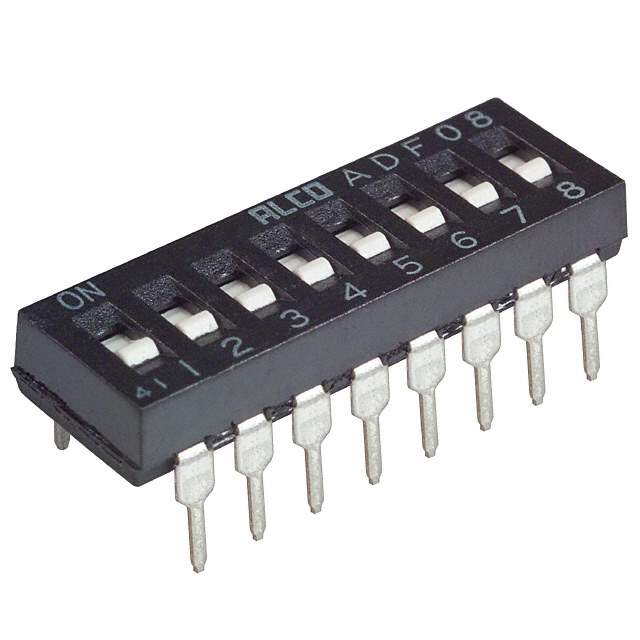

The TE Connectivity ALCOSWITCH Switches is an active component with a voltage rating of 24VDC and a current rating of 100mA.

• Circuit: SPST
• Actuator Level: flush and recessed
• Washable: yes
• Mounting: through-hole
• Material: Polyphenylene Sulfide (PPS)
• Height Above Board: 0.189" (4.80mm)
• Length: 0.878" (22.30mm)
• Actuator Type: slide (standard)
• Electrical Life Cycle: 1,000 cycles
• Mechanical Life Cycle: 1,000 cycles
• Packaging: tube/rail
• Positions: 8
• Pitch: 0.100" (2.54mm)
• Termination Style: full
• Contact Finish: gold
• Temperature Range: -30°C to 85°C
