Same model may have multiple batches, images only for reference.

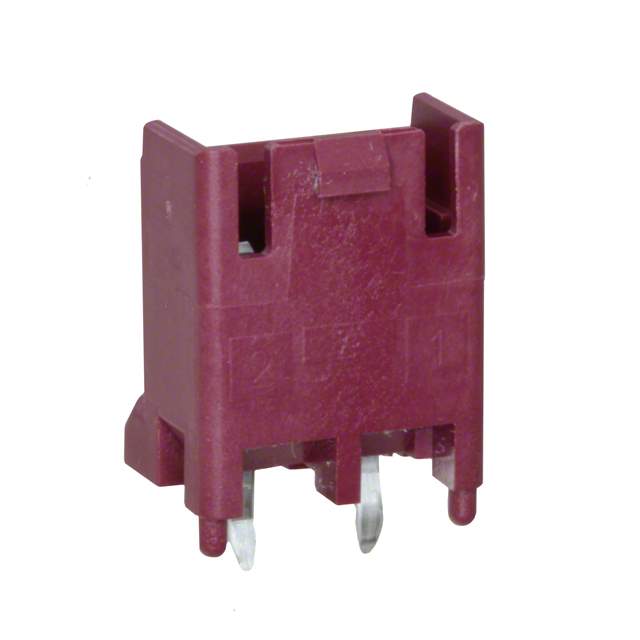

1-1376382-2

Name: 1-1376382-2
Brand: TE Connectivity
SKU: 1334214
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1376382-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 5MM / Connector Header Through Hole 2 position 0.197" (5.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Tab
Pitch - Mating	0.197" (5.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.555" (14.10mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Red
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	300VAC
Mated Stacking Heights	19.4mm
Applications	General Purpose
Base Product Number	1376382
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1-1376382-2-ND,-1-1376382-2-CSI,A138952,-1-1376382-2-SI,2266-1-1376382-2
Standard Package	200
Win Source Part Number	1334214-1-1376382-2
Ultra Librarian 3D Model	Ultra Librarian 1-1376382-2 CAD Model

Alternative Products

Description

TE Connectivity AMP Connectors brings to you a high-quality header connector that is perfect for general-purpose applications.

Connector: Male pin header
Positions: 2
Board Guide: Yes
Contact Material: Copper Alloy
Voltage Rating: 300VAC
Insulation Material: Polyamide (PA66), nylon 6/6, glass-filled
Temperature Range: -40°C to 105°C
Shrouding: Shrouded with 4 walls
Pitch-Mating: 0.197" (5.00mm)
Contact Finish: Tin
Mounting: Through a Hole
Fastening Type: Locking Ramp
Standard Package: 200 connectors
Manufacturer: TE Connectivity AMP Connectors
