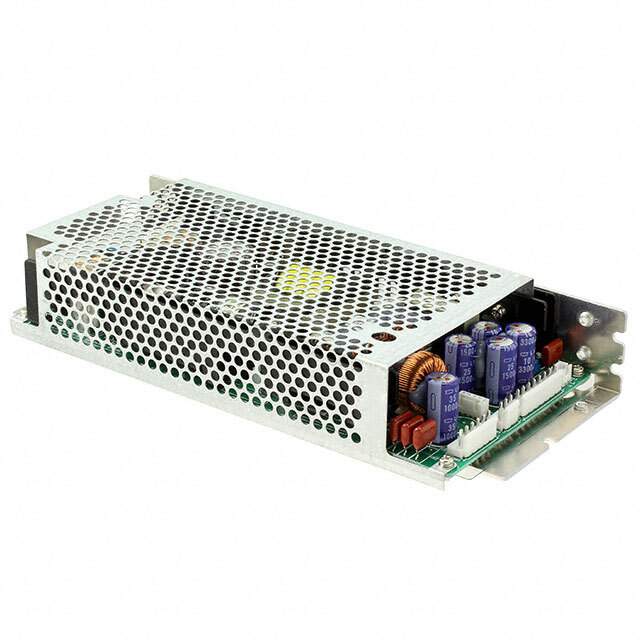

ZWQ1305223/A Real Image
Same model may have multiple batches, images only for reference.

ZWQ1305223/A

Part No ZWQ1305223/A
Manufacturer TDK-Lambda Americas Inc.
Catalog OEM Parts (T - Z)
Description AC/DC Power Supply Quad-OUT 5V/12V/-12V/3.3V 19A/5A/5A/12A 149.6W 24-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CE
Current - Output 1 19 A
Depth 106 mm
Efficiency 72 %
Frequency 63 Hz
Height 35.052 mm
Isolation Voltage 3 kV
Length 225.044 mm
Max Current Rating 2.6 A
Maximum Operating Temperature 70 °C
Max Output Current 10 A
Max Output Power 149.6 W
Max Power Dissipation 130 W
Min Operating Temperature -10 °C
Mount Chassis Mount
Number of Outputs 4
Number of Pins 24
Output Current 15 A
Output Power 149.6 W
Output Voltage 5 V
Power Rating 130 W
RoHS Compliant
Voltage - Output 1 5 V
Voltage - Output 2 12 V
Voltage - Output 3 -12 V
Voltage - Output 4 3.3 V
Width 105.918 mm
Win Source Part Number 1019370-ZWQ1305223/A
Categories OEM Parts(T-Z)
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ZWQ1305223/A CAD Model

Description

The TDK-Lambda Americas Inc. power supply has a power rating of 130 W and an efficiency of 72%.

  • Power Rating: 130 W
  • Efficiency: 72%
  • Outputs: Four
  • Output Currents: 15 A, 19 A, 10 A, and 10 A
  • Output Voltages: 5 V, 12 V, -12 V, and 3.3 V
  • Maximum Current Rating: 2.6 A
  • Maximum Power Dissipation: 130 W
  • Pins: 24
  • Isolation Voltage: 3 kV
  • Frequency: 63 Hz
  • Maximum Operating Temperature: 70 °C
  • RoHS Compliant: Yes
  • Mounting: Chassis Mountable
  • Dimensions: 225.044 mm x 105.918 mm x 35.052 mm (L x W x H)
  • Supply and Demand Status: shortage
