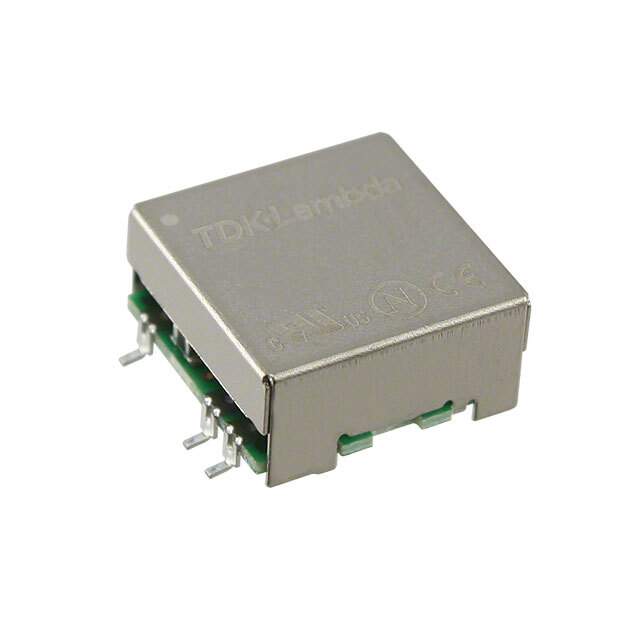

CC1R5-2412DR-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-2412DR-E

Part No CC1R5-2412DR-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 1W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 60mA, 60mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 60mA, 60mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 7-SMD Module
Size / Dimension 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Control Features Enable, Active Low
Base Product Number CC1R5
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1340255-CC1R5-2412DR-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-2412DR-E CAD Model

Description

The CC-E (1.5W) series is an isolated module power supply that has a power output of 1W.

  • Output Power: 1W
  • Packaging: Tray
  • Size / Dimension: 0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
  • Applications: ITE (Commercial)
  • Voltage - Input: 18V ~ 36V
  • Number of Outputs: 2
  • Current - Output 1 (Max): 60mA
  • Current - Output 2 (Max): 60mA
  • Voltage - Output 1: 12 ~ 15V
  • Voltage - Output 2: -12 ~ -15V
  • Mounting Type: Surface Mount
  • Package / Case: 7-SMD Module
  • Operating Temperature: -40°C to 85°C
