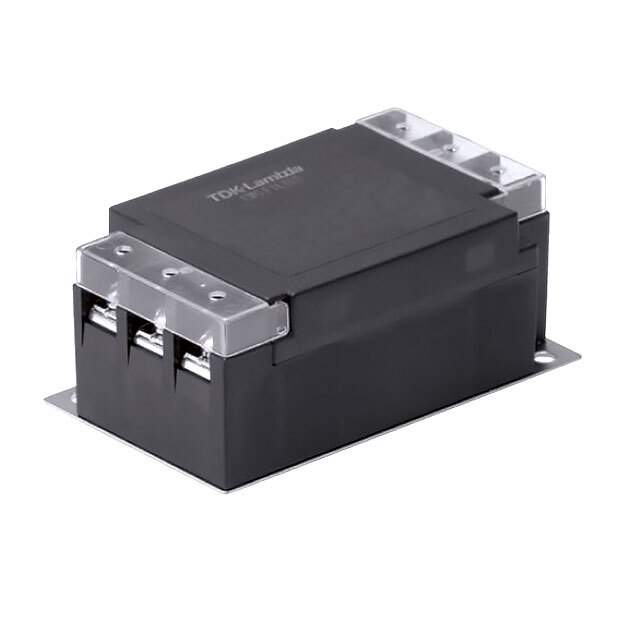

RSAN-2003 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer TDK-Lambda Americas Inc.
Series RSAN
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 3A
Applications General
Approvals CSA, EN, UL
Operating Temperature Range -25°C ~ 85°C
Mounting Chassis Mount
Termination Style Terminal Block
Win Source Part Number 793382-RSAN-2003
Popularity Medium
Supply and Demand Status Limited
Family Name RSAN
Introduction Date February 01, 1990
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian RSAN-2003 CAD Model

Description

TDK-Lambda Americas Inc. manufactures the electronic component with ID 731712.

  • Win Source Part Number: 793382-RSAN-2003
  • Series: RSAN
  • Termination Style: Terminal block
  • Operating Temperature Range: -25°C to 85°C
  • Approvals: CSA, EN, UL
  • Mounting: Chassis Mount
  • Configuration: Single stage
  • Filter Type: Single phase
  • Current Rating: 3A
  • Voltage Rating DC: 250V
  • Voltage Rating AC: 250V
  • Family Name: RSAN
  • Introduction Date: February 01, 1990
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2027
