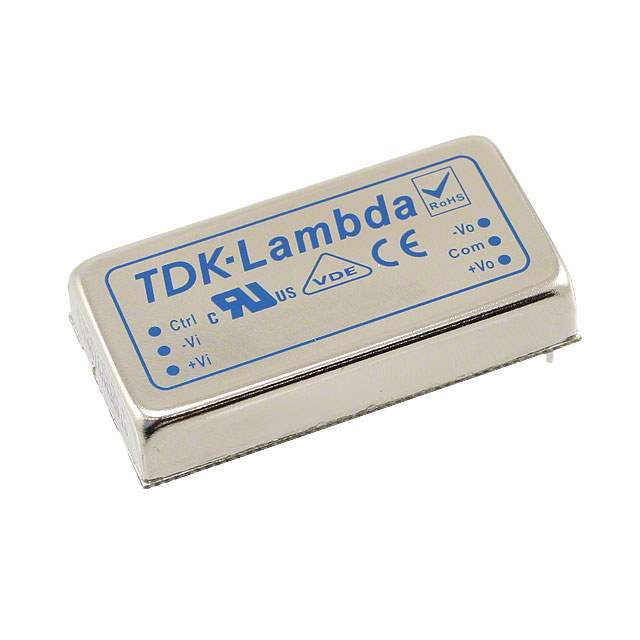

PXD3012D05 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package DIP
Current - Output 1 3 A
Current - Output 2 1 A
Features OCP, OVP, SCP
Height 10.16 mm
Isolation Voltage 1.6 kV
Length 50.8 mm
Max Input Voltage 18 V
Max Output Current 3 A
Max Power Dissipation 30 W
Min Input Voltage 9 V
Mount Through Hole
Nominal Input Voltage 12 V
Number of Outputs 2
Output Power 30 W
Packaging Bulk
RoHS Compliant
Voltage - Output 1 5 V
Voltage - Output 2 -5 V
Width 25.4 mm
Win Source Part Number 1084646-PXD3012D05
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PXD3012D05 CAD Model

Description

The TDK-Lambda Americas Inc. PXD3012D05 is a board mount module that is commonly used in various electronic devices.

  • Supply and Demand Status: shortage
  • Features: OCP, OVP, and SCP
  • Output 1 Voltage: 5V
  • Output 2 Voltage: -5V
  • Output Power: 30W
  • Manufacturer: TDK-Lambda Americas Inc.
