Same model may have multiple batches, images only for reference.

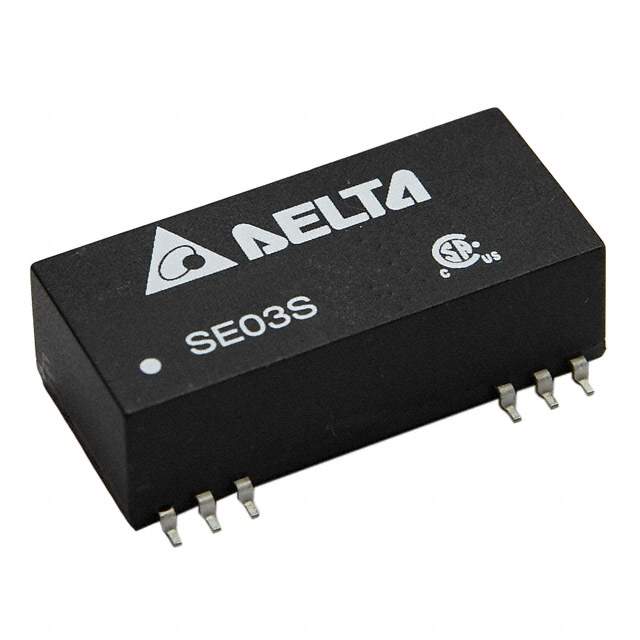

SE03D2405A Real Image
Same model may have multiple batches, images only for reference.

SE03D2405A

Part No SE03D2405A
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 36V Input
Datasheet
SE03D2405A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series SE03S/D (3W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications Medical
Features SCP, UVLO
Temperature Range - Operating -40°C ~ 71°C
Efficiency 79%
Mounting SMD (SMT)
Package / Case 24-SMD Module, 12 Leads
Dimension 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
Base Product Number SE03D
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1356
Standard Package 10
Win Source Part Number 1092198-SE03D2405A
Ultra Librarian 3D Model Ultra Librarian SE03D2405A CAD Model

Description

The SE03D2405A from Delta Electronics is a DC-DC converter module.

  • Input Voltage Range: 18V to 36V
  • Output Power: Up to 3W
  • Output Channels: Two
  • Output Voltage: 5V and -5V
  • Application: Medical applications
  • REACH: Unaffected
  • ECCN: EAR99
