Same model may have multiple batches, images only for reference.

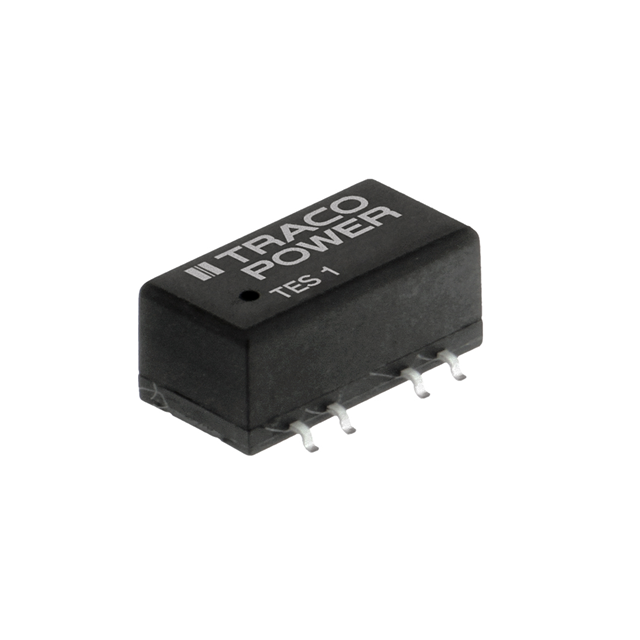

TES 1-0522 Real Image
Same model may have multiple batches, images only for reference.

TES 1-0522

Part No TES 1-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 960MW / Isolated Module DC DC Converter 2 Output 12V -12V 40mA, 40mA 4.5V - 5.5V Input
Datasheet
TES 1-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TES 1 (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 40mA, 40mA
Power (Watts) 960 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 78%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 5 Leads
Dimension 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number TES 1
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2453
Standard Package 10
Win Source Part Number 1209462-TES 1-0522
Ultra Librarian 3D Model Ultra Librarian TES 1-0522 CAD Model

Description

The Traco Power TES 1-0522 model is a reliable DC-DC converter that is suitable for a variety of applications.

  • Power Rating: 960 mW
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 40mA each
  • Efficiency: 78%
  • Operating Temperature: -40°C to 90°C
  • Package: 10
  • Dimension: 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
