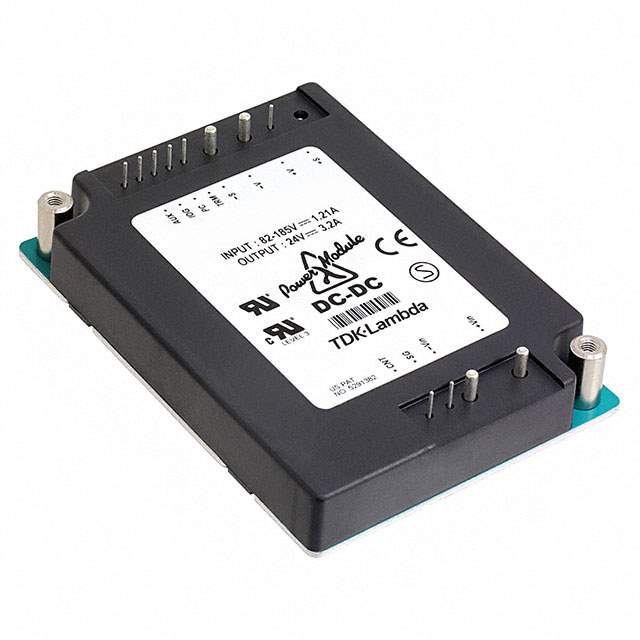

PH75S48-12 Real Image
Same model may have multiple batches, images only for reference.

PH75S48-12

Part No PH75S48-12
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.3A 36V - 76V Input
Datasheet
PH75S48-12 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PH-S (75W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 6.3A
Power (Watts) 75 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Module
Dimension 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features Enable, Active Low
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PH75S4812
Standard Package 1
Win Source Part Number 1033236-PH75S48-12
Ultra Librarian 3D Model Ultra Librarian PH75S48-12 CAD Model

Description

The PH75S48-12 is an isolated module DC-DC converter designed for use in power supplies.

  • Series: PH-S (75W)
  • Power Output: 75W
  • Features: Remote on/off, Overcurrent Protection (OCP), Overvoltage Protection (OVP)
  • Voltage Isolation: 3 kV
  • Single Output Current: 6.3A
  • Input Voltage Range: 36V to 76V
  • Output Voltage: 12V
  • Package: Module
  • Mounting Type: Through-Hole
  • Temperature Range: -20°C to 85°C
  • Supplier: TDK-Lambda Americas Inc
  • ECCN: EAR99
  • Status: Obsolete
