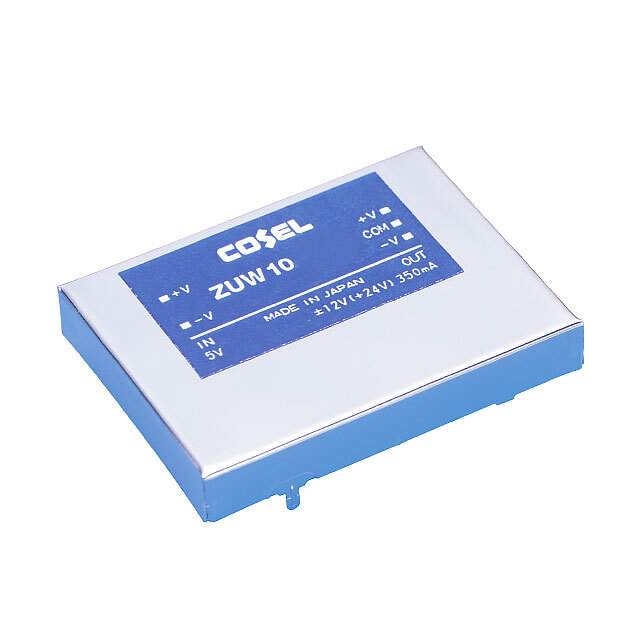

Same model may have multiple batches, images only for reference.

ZUW102412

Name: ZUW102412
Brand: Cosel USA, Inc.
SKU: 1212682
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW102412
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 450mA, 450mA 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (10W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	450mA, 450mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	81%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1885
Standard Package	1
Win Source Part Number	1212682-ZUW102412
Ultra Librarian 3D Model	Ultra Librarian ZUW102412 CAD Model

Alternative Products

Description

The Cosel USA, Inc. ZUW (10W) is an isolated module type power supply from Cosel USA, Inc.

Package: Box
Number of Outputs: Two
Features: OCP
Application: Commercial
Voltage Input: 18V to 36V
Efficiency: 81%
Cross-Reference: Yes, other products of the same category
Other Name: 1776-1885
