Same model may have multiple batches, images only for reference.

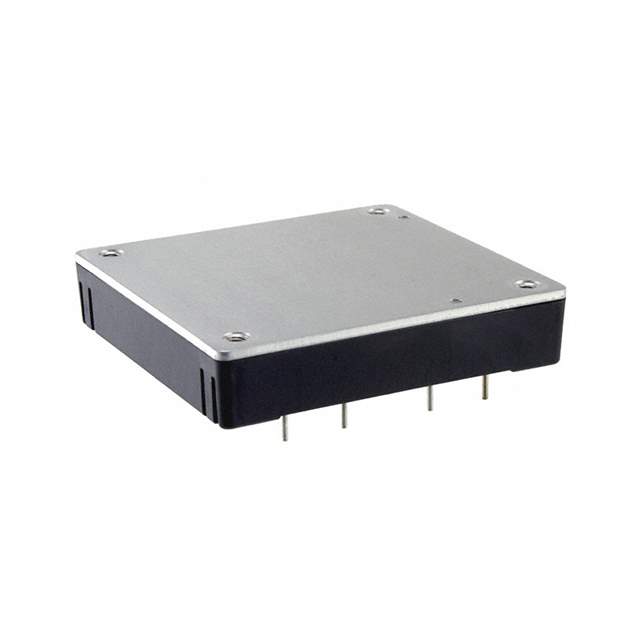

PAH75D48-3325 Real Image
Same model may have multiple batches, images only for reference.

PAH75D48-3325

Part No PAH75D48-3325
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 2.5V 75W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Isolated Module DC DC Converter 2 Output 3.3V 2.5V - 15A, 15A 36V - 76V Input
Manufacturer TDK-Lambda Americas Inc.
Series PAH75D
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 100°C
Mounting Through Hole
Package 9-DIP Module, 1/2 Brick
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929978-PAH75D48-3325
Ultra Librarian 3D Model Ultra Librarian PAH75D48-3325 CAD Model

Description

The TDK-Lambda Americas Inc. PAH75D48-3325 is an Isolated Module DC DC Converter designed for use in a variety of applications such as telecommunications, data communications, and industrial controls.

  • Outputs: Two outputs of 3.3V and 2.5V
  • Maximum Output Current: 15A and 15A respectively
  • Input Voltage Range: 36V to 76V
  • Packaging: Bulk packaging
  • Popularity Rating: High
  • Package: 9-DIP Module, 1/2 Brick package
  • Device Status: Obsolete
  • Supply and Demand Status: Balance
  • Quantity per Package: 1 unit
