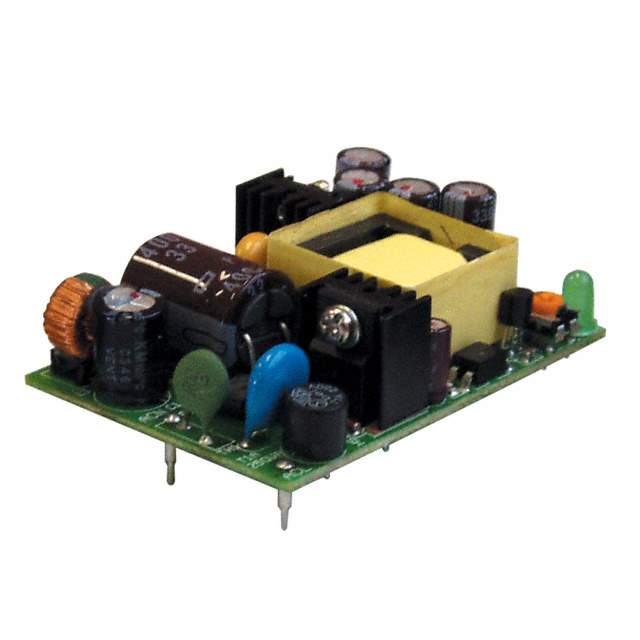

KPS512 Real Image
Same model may have multiple batches, images only for reference.

KPS512

Part No KPS512
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount Modules
Description AC/DC Power Supply Single-OUT 12V 0.42A 5W 6-Pin SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CE, CSA, EN, UL
Current - Output 1 420 mA
Depth 55.118 mm
Efficiency 70 %
Features OVP, SCP
Height 20.066 mm
Length 55.118 mm
Max Current Rating 130 mA
Max Input Voltage 264 V
Max Input Voltage (AC) 264 V
Maximum Operating Temperature 70 °C
Max Output Current 420 mA
Max Output Power 5 W
Max Power Dissipation 5 W
Min Input Voltage 85 V
Min Input Voltage (AC) 85 V
Min Operating Temperature 0 °C
Mount PCB, Through Hole
Number of Outputs 1
Number of Pins 4
Output Current 420 mA
Output Power 5 W
Output Voltage 12 V
Power Rating 5 W
REACH SVHC Unknown
RoHS Compliant
Schedule B 8504409510, 8504409510
Voltage - Output 1 12 V
Weight 29.029912 g
Width 35.052 mm
Win Source Part Number 981559-KPS512
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian KPS512 CAD Model

Description

The KPS512 is a board mount module manufactured by TDK-Lambda Americas Inc.

  • Power Rating: 5W
  • Output Voltage: 12V
  • Maximum Input Voltage: 264V
  • Minimum Input Voltage: 85V (AC)
  • Current Output: 420mA
  • Efficiency: 70%
  • Package: 4-Pin
  • Mounting Type: PCB, Through-Hole
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 70 °C
