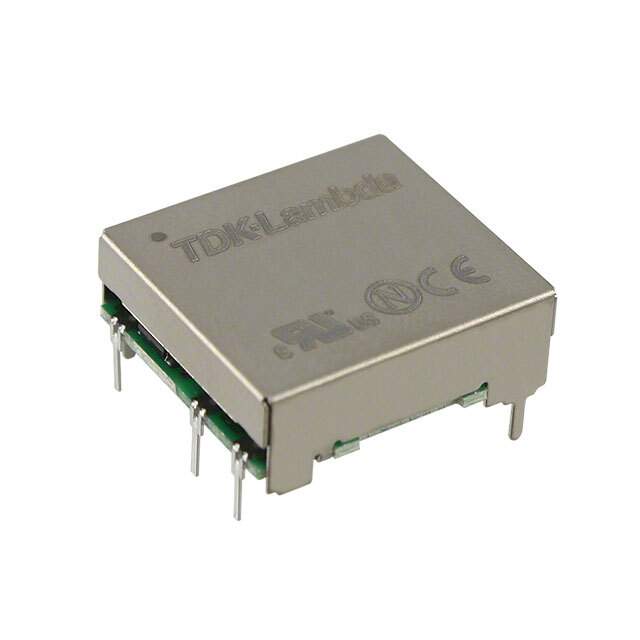

CC6-0505SF-E Real Image
Same model may have multiple batches, images only for reference.

CC6-0505SF-E

Part No CC6-0505SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (6W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC6-0505
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-2480,CC60505SFE
Standard Package 10
Win Source Part Number 1211093-CC6-0505SF-E
Ultra Librarian 3D Model Ultra Librarian CC6-0505SF-E CAD Model

Description

The CC6-0505SF-E is a DC DC converter manufactured by TDK-Lambda Americas Inc. Bold the product name CC6-0505SF-E and manufacturer TDK-Lambda Americas Inc..

  • Power: 5 W
  • Voltage Isolation: 500 V
  • Mounting Type: Through-Hole
  • Application: ITE (Commercial)
  • Supply and Demand Status: Limited
  • Win Source Part Number: 1211093-CC6-0505SF-E
