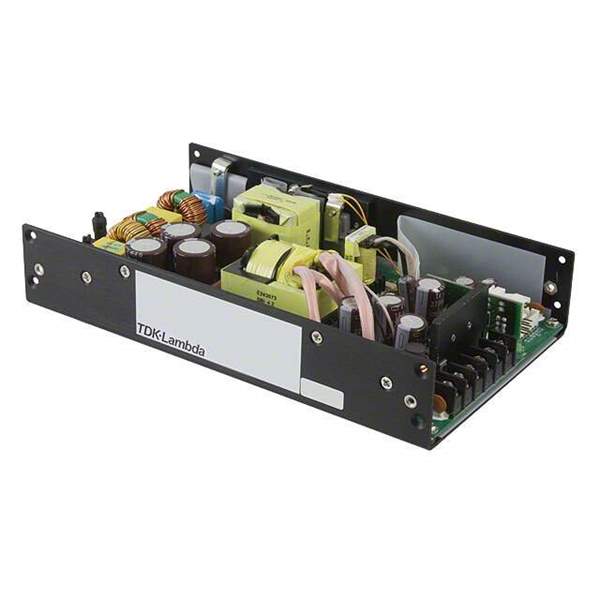

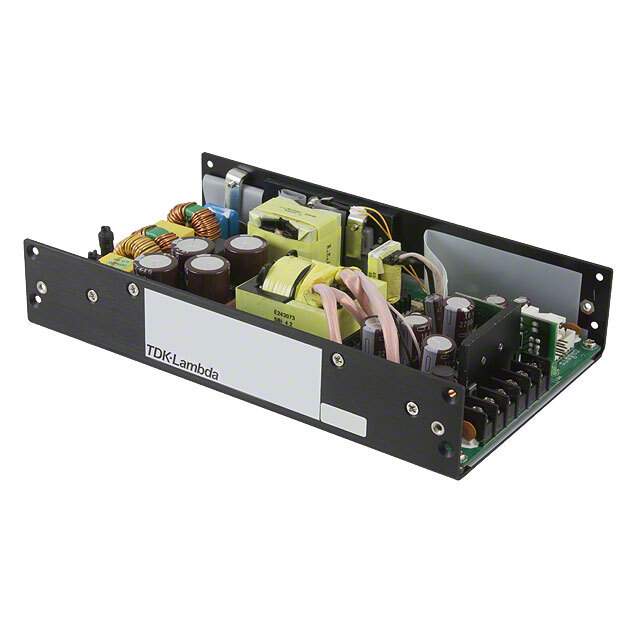

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series CSS500 (500W)
Package Bulk
Product Status Not For New Designs
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 36V
Current - Output 1 10 A
Power (Watts) 360W (500W Forced Air)
Applications Medical
Voltage - Isolation 4 kV
Efficiency 87%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
Approval Agency CE
Minimum Load Required No
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Other Names 285-CSS500-36,CSS50036,CSS500-36,285-2082-ND,285-2082
Standard Package 1
Win Source Part Number 965906-CSS500-36
Ultra Librarian 3D Model Ultra Librarian CSS500-36 CAD Model

Description

The TDK-Lambda Americas Inc CSS500 (500W) series is an open-frame AC-DC converter with an adjustable output, load sharing, remote sense, standby output, and universal input.

  • Power Rating: 360W (500W Forced Air)
  • Voltage Rating: 36V
  • Package: Bulk
  • Standard Package: 1 per unit
  • Application: Medical
  • Operating Temperature: 0°C to 70°C (With Derating)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.40.6018
  • Approval: CE
