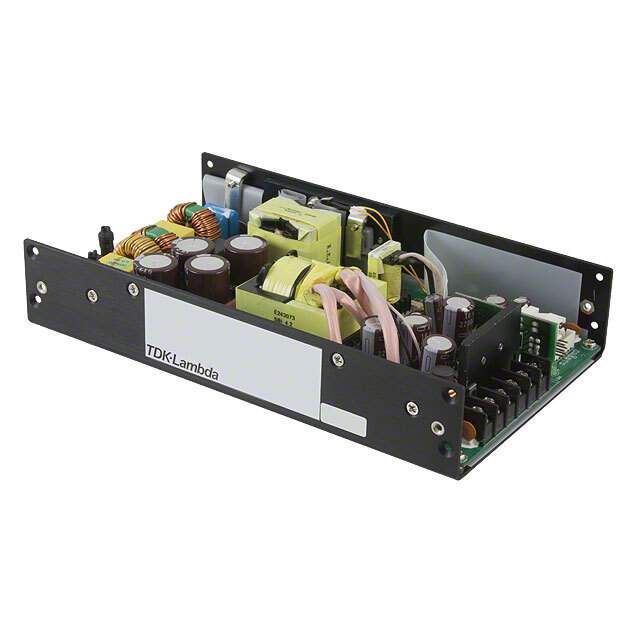

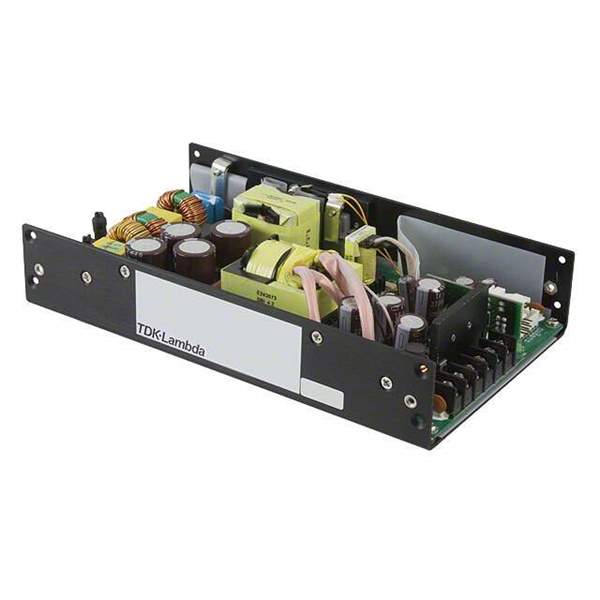

CSS500-36/I Real Image
Same model may have multiple batches, images only for reference.

CSS500-36/I

Part No CSS500-36/I
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 36V 360W / Open Frame AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series CSS500 (500W)
Package Bulk
Product Status Not For New Designs
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 36V
Current - Output 1 10 A
Power (Watts) 360W (500W Forced Air)
Applications Medical
Voltage - Isolation 4 kV
Efficiency 87%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
Approval Agency CE
Minimum Load Required No
Base Product Number CSS500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Other Names 285-2083-ND,CSS500-36/I,CSS50036/I,285-2083,285-CSS500-36/I,CSS50036I
Standard Package 1
Win Source Part Number 1164473-CSS500-36/I
Ultra Librarian 3D Model Ultra Librarian CSS500-36/I CAD Model

Description

The CSS500-36/I is an open frame type AC-DC converter from TDK-Lambda Americas Inc that is widely used in medical applications.

  • Features: Adjustable output, load sharing, remote sense, standby output, and universal input.
  • Power Rating: 360W (500W Forced Air)
  • Input Voltage Range: 90 ~ 264 VAC
  • Voltage Isolation: 4 kV
  • Output Voltage: 36V
  • Efficiency: 87%
  • Minimum Load: No
  • Mounting Type: Chassis mount
  • Temperature Range: 0°C ~ 70°C (With Derating)
  • Dimension: 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
  • Packaging: Bulk
