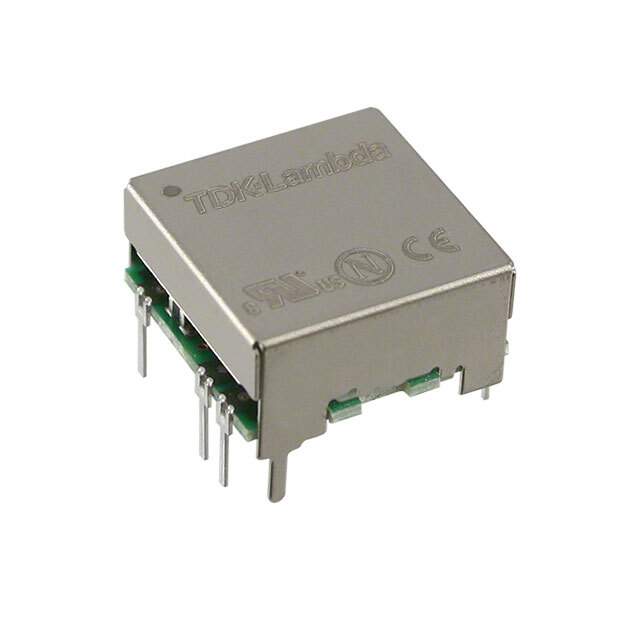

CC1R5-1205SF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-1205SF-E

Part No CC1R5-1205SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount Modules
Description Conv DC-DC Single Step Up 1.5V to 16.5V 8-Pin PDIP N
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PDIP
Current - Output 1 300 mA
Depth 16.6 mm
Height 8.5 mm
Isolation Isolated
Isolation Voltage 500 V
Lead Free Yes
Length 16.51 mm
Max Input Voltage 18 V
Max Input Voltage (DC) 18 V
Maximum Operating Temperature 85 °C
Max Output Current 300 mA
Max Output Power 1.5 W
Max Power Dissipation 1.5 W
Min Input Voltage 9 V
Min Input Voltage (DC) 9 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Nominal Input Voltage 12 V
Nominal Output Voltage 5 V
Number of Outputs 1
Number of Pins 7
Output Current 300 mA
Output Power 1.5 W
Output Voltage 5 V
Power Rating 1.5 W
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Voltage - Output 1 5 V
Weight 3.2 g
Width 16.51 mm
Win Source Part Number 1007377-CC1R5-1205SF-E
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CC1R5-1205SF-E CAD Model

Description

The TDK-Lambda Americas Inc. CC1R5-1205SF-E is a board mount module that has an isolation voltage of 500V.

  • Isolation Voltage: 500V
  • Power Rating: 1.5W
  • Maximum Output Current: 300mA
  • Nominal Input Voltage: 12V
  • Nominal Output Voltage: 5V
  • Package: PDIP
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Lead-Free Feature: yes
  • RoHS Compliant: RoHS compliant
