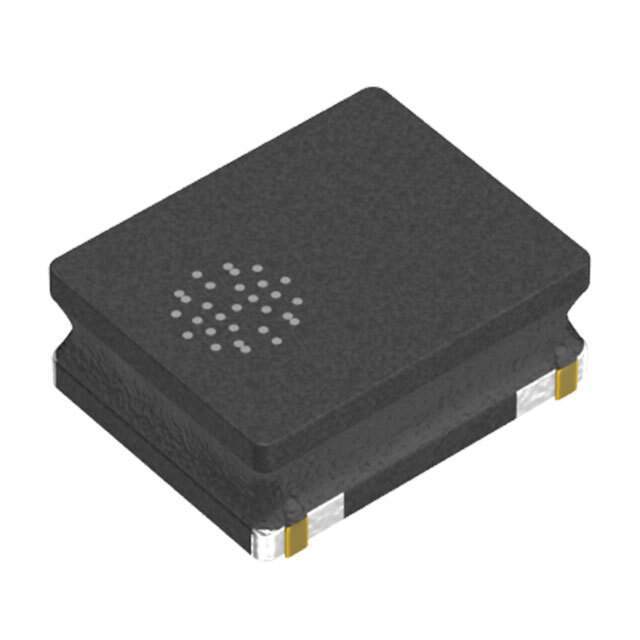

The VLS252010HBX-100M is a wire-wound inductor manufactured by TDK Corporation. It is designed for use in power supply circuits, DC-DC converters, and other applications requiring a compact size and high performance. The VLS series is known for its robust construction and reliable electrical characteristics.

Applications:

• DC-DC converters
• Power supply circuits for portable devices
• Noise filters
• Choke coils
• Buck or Boost converters

Features:

• Compact size: 2.5mm x 2.0mm x 1.0mm
• Inductance value: 10µH
• Magnetically shielded construction to reduce EMI
• High current carrying capacity
• Operating temperature range: -40°C to +105°C (including self-temperature rise)
• Excellent solderability

Benefits:

• Miniature Size: Ideal for space-constrained applications in portable electronic devices.
• High Performance: Provides stable and reliable performance in demanding power supply environments.
• EMI Reduction: The magnetically shielded construction minimizes electromagnetic interference, ensuring clean signal integrity.
• Wide Operating Temperature: Suitable for use in a variety of environmental conditions.
• Efficient Power Delivery: Handles significant current loads without saturation, ensuring efficient power delivery.

Additional Details:

The VLS252010HBX-100M inductor utilizes a ferrite core material, contributing to its high inductance value and temperature stability. The shielded construction is crucial for minimizing electromagnetic interference (EMI), making it suitable for sensitive electronic devices. Its compact size and robust design make it a reliable choice for various power management applications. The inductance tolerance is typically ±20%. The saturation current is an essential parameter to consider, as exceeding it can cause a significant drop in inductance. Refer to the manufacturer's datasheet for detailed electrical characteristics, including DC resistance (DCR) and self-resonant frequency (SRF).
