Same model may have multiple batches, images only for reference.

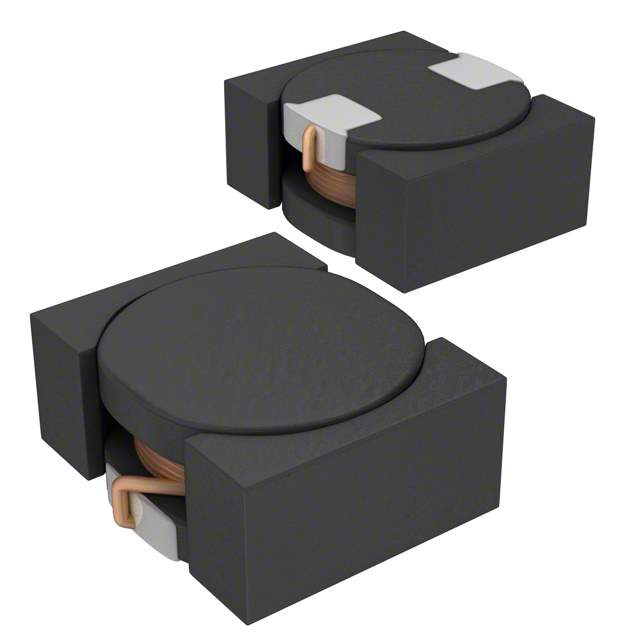

VLF302515MT-2R2M-CA Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-2R2M-CA

Part No VLF302515MT-2R2M-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.71A 50MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 2.71 A 50mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLF-M-CA
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.71 A
Current - Saturation (Isat) 1.57A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1340689-VLF302515MT-2R2M-CA
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-2R2M-CA CAD Model

Description

The TDK Corporation VLF302515MT-2R2M-CA is a fixed inductor that is used in a variety of applications, including power supplies, automotive, and industrial applications. The device operates with a current rating of 2.71A and has an inductance of 2.2 µH.

  • Inductor Type: Fixed
  • Inductance: 2.2 µH
  • Current Rating: 2.71A
  • Shielding: Shielded
  • Packaging: Tape & Reel (TR)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.4000
  • Series: VLF-M-CA
  • Applications: Power Supplies, Automotive, Industrial
  • Manufacturer: TDK Corporation
