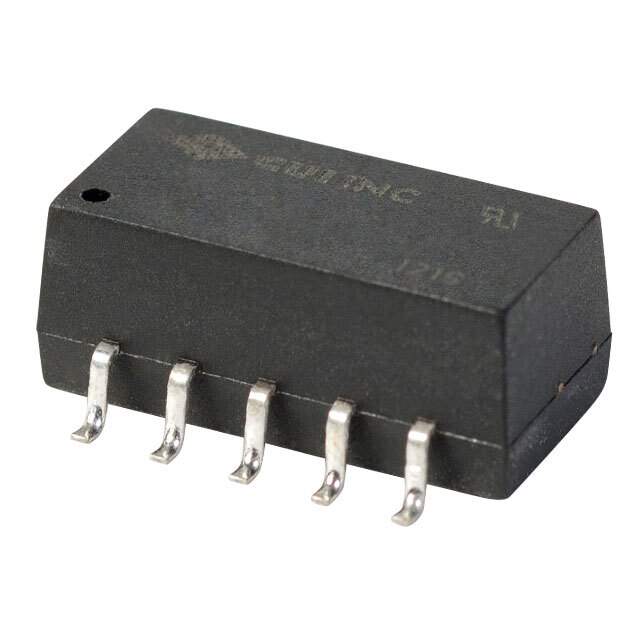

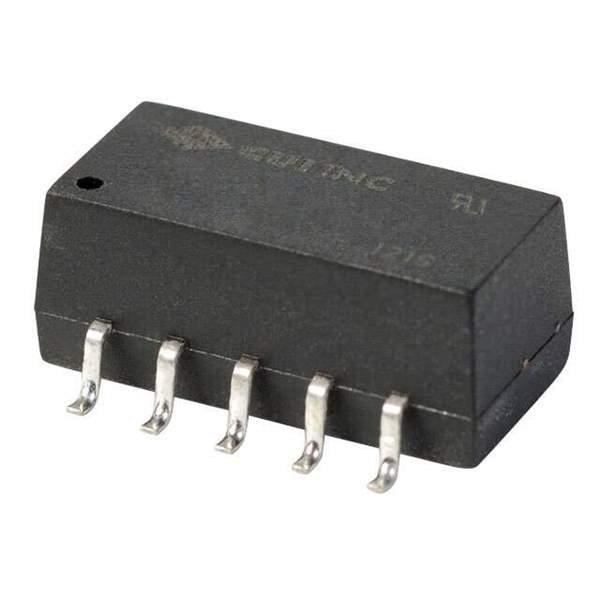

VAT1-S5-D15-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

VAT1-S5-D15-SMT-TR

Part No VAT1-S5-D15-SMT-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERTER DC/DC +/-15V OUT 1W
Datasheet
VAT1-S5-D15-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer CUI Inc.
Series VAT1-SMT
Packaging Reel package
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 79%
Mounting SMD
Package 10-SMD Module
Dimension 0.60" L x 0.30" W x 0.25" H (15.2mm x 7.6mm x 6.4mm)
Win Source Part Number 799005-VAT1-S5-D15-SMT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VAT1-S5-D15-SMT-TR CAD Model

Description

The VAT1-SMT series is an isolated module type DC DC converter with a power of 1W.

  • Package: 10-SMD module
  • Voltage Isolation: 1kV (1000V)
  • Number of Outputs: 2
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Efficiency: 79%
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: CUI Inc.
  • Part Status: Obsolete (EOL)
