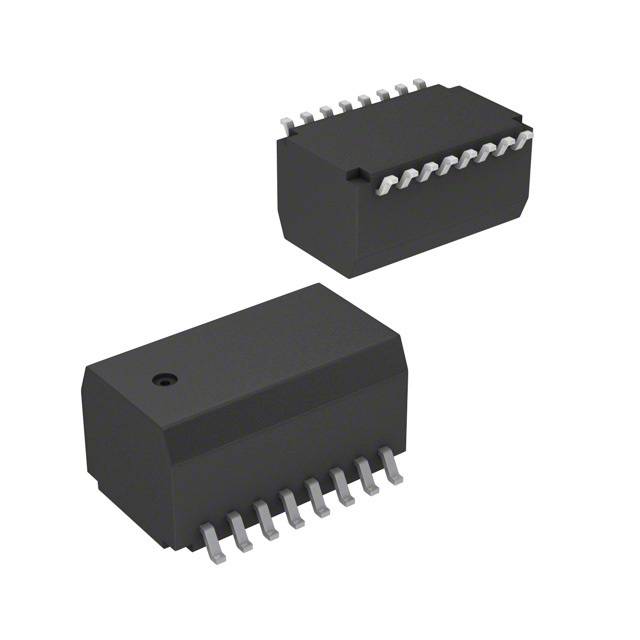

TLA-6T127LF TDK Corporation
Same model may have multiple batches, images only for reference.

TLA-6T127LF

Part No TLA-6T127LF
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description XFRMR LAN 1CT:1CT 350UH 16SOP / 350μH LAN Pulse Transformer 1CT:1CT Surface Mount
Datasheet
TLA-6T127LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series TLA
Package Tray
Product Status Obsolete
Transformer Type LAN
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.457" L x 0.268" W (11.60mm x 6.80mm)
Height - Seated (Max) 0.232" (5.90mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 368521-TLA-6T127LF
Ultra Librarian 3D Model Ultra Librarian TLA-6T127LF CAD Model

Description

The TLA series pulse transformer is designed for LAN applications, offering a compact size of 0.457" L x 0.268" W (11.60mm x 6.80mm) and a maximum seated height of 0.232" (5.90mm).

  • Application: LAN
  • Size: 0.457" L x 0.268" W (11.60mm x 6.80mm)
  • Height: 0.232" (5.90mm)
  • Inductance: 350µH
  • Mounting: Surface Mount
  • Package: Tray
  • Operating Temperature: 0°C to 70°C
  • Manufacturer: TDK Corporation
  • Series: TLA series
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (unlimited)
  • Status: Obsolete
