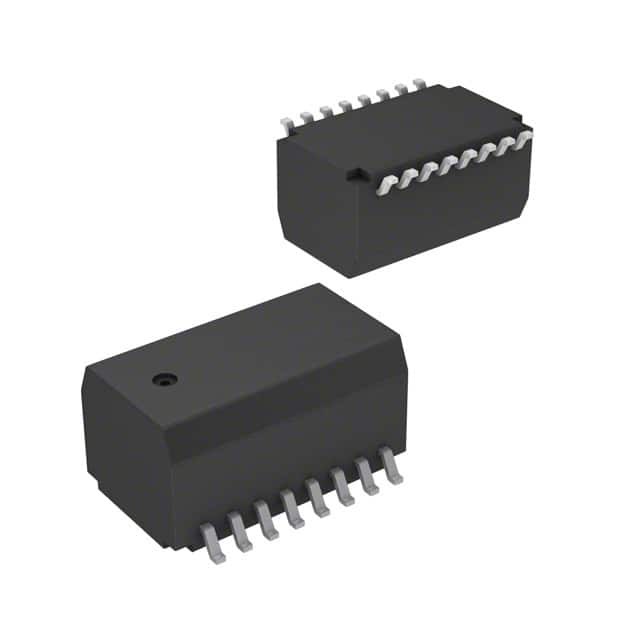

TLA-6M103LF
Same model may have multiple batches, images only for reference.

TLA-6M103LF

Part No TLA-6M103LF
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description INTEGRATED FILTER MODULE 16SOP
Datasheet
TLA-6M103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series TLA
Package Tray
Product Status Active
Transformer Type LAN
Mounting Type Surface Mount
Size / Dimension 1.012" L x 0.374" W (25.70mm x 9.50mm)
Height - Seated (Max) 0.234" (5.95mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 936653-TLA-6M103LF
Ultra Librarian 3D Model Ultra Librarian TLA-6M103LF CAD Model

Description

The 936653-TLA-6M103LF is a pulse transformer from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Product Name: 936653-TLA-6M103LF
  • Series: TLA
  • Application: LAN
  • Size: 1.012" L x 0.374" W (25.70mm x 9.50mm)
  • Height: 0.234" (5.95mm)
  • Mounting: Surface mount
  • Package: Tray
  • Quantity: 10 pcs
  • Operating Temperature Range: 0°C to 70°C
  • Status: Active
