Same model may have multiple batches, images only for reference.

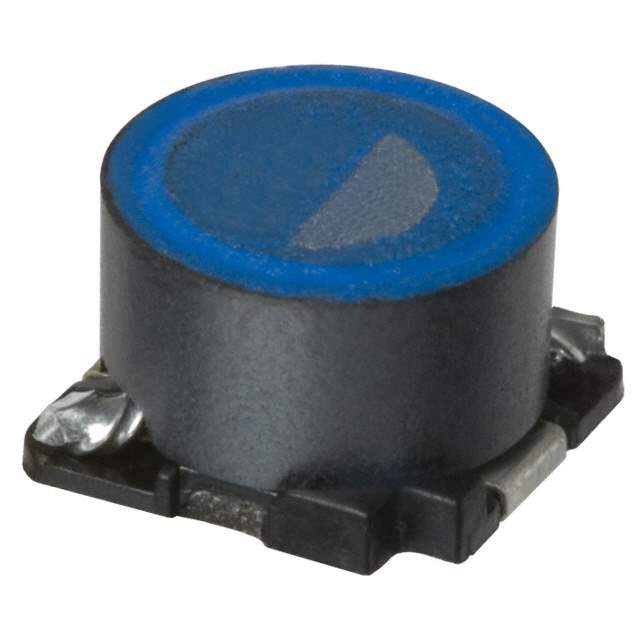

SLF7045T-681MR20 Real Image
Same model may have multiple batches, images only for reference.

SLF7045T-681MR20

Part No SLF7045T-681MR20
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SLF7045T-681MR20 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 270 mA
Current - Saturation (Isat) 200mA
Shielding Shielded
DC Resistance (DCR) 1.776Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Other Names 445-1213-1,445-1213-6,445-1213-2,SLF7045T681MR20
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272673-SLF7045T-681MR20
Ultra Librarian 3D Model Ultra Librarian SLF7045T-681MR20 CAD Model

Description

The TDK Corporation SLF7045T-681MR20 is a drum core, wirewound inductor with a shielding of ferrite material.

  • Inductance: 680 μH
  • Tolerance: ±20%
  • Height: 0.189" (4.80mm)
  • Package Type: Tape and reel
  • Standard Package: 1000 components
  • Mounting Type: SMD (SMT)
  • DC Resistance (DCR): 1.776Ohm Max
  • Current Rating (Amps): 270 mA
  • Inductance Frequency: 1 kHz
  • Temperature Range: Between -40°C to 105°C
  • Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.8000
