Same model may have multiple batches, images only for reference.

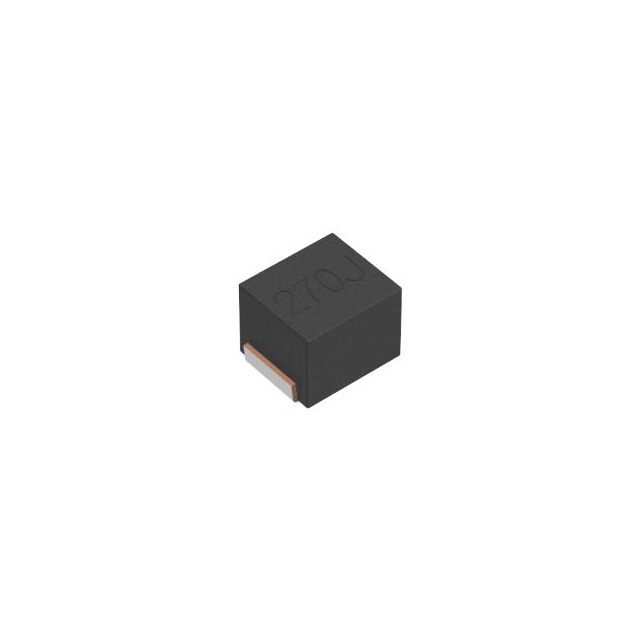

NLV25T-R27J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-R27J-PFD

Part No NLV25T-R27J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 270NH 420MA 550 MOHM
Datasheet
NLV25T-R27J-PFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 270nH
Tolerance ±5%
Current Rating 420mA
DC Resistance (DCR) 550 mOhm Max
Q @ Freq 30 @ 25.2MHz
Frequency - Self Resonant 425MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C to 105°C
Frequency - Test 25.2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.075" (1.90mm)
Win Source Part Number 209269-NLV25T-R27J-PFD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NLV25T-R27J-PFD CAD Model

Description

The NLV25T-R27J-PFD wirewound inductor from TDK Corporation is an ideal choice for various electronic applications.

  • GPTDescription: This inductor has an inductance of 270nH and a current rating of 420mA.
  • GPTDescription: It has a tolerance of ±5% and a DC resistance of 550 mOhm Max.
  • GPTDescription: The NLV25T-R27J-PFD is designed with ferrite material core and has a Q @ Freq of 30 @ 25.2MHz.
  • GPTDescription: It has a frequency range of -40°C to 105°C and is AEC-Q200 rated.
  • GPTDescription: The inductor is available in 1008 (2520 Metric) case/package and comes in a reel - TR packaging. and supply and demand status is balanced.
  • GPTDescription: You can order this product in a quantity of 2k pcs.
