Same model may have multiple batches, images only for reference.

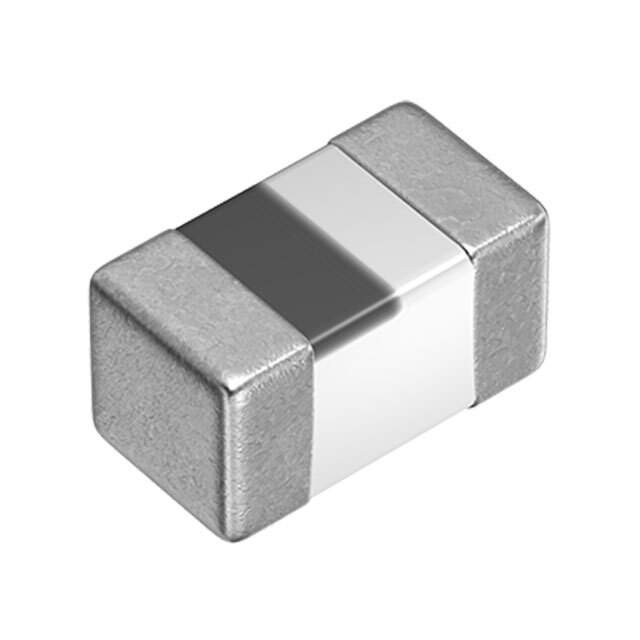

MLG0402P0N4BT000 Real Image
Same model may have multiple batches, images only for reference.

MLG0402P0N4BT000

Part No MLG0402P0N4BT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 0.4NH 350MA 200MOHM SM / 0.4 nH Unshielded Multilayer Inductor 350 mA 200mOhm Max 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Non-Magnetic
Inductance 0.4 nH
Tolerance ±0.1nH
Current Rating (Amps) 350 mA
Shielding Unshielded
DC Resistance (DCR) 200mOhm Max
Frequency - Self Resonant 10GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Surface Mount
Case / Package 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 20,000
Win Source Part Number 1327833-MLG0402P0N4BT000
Ultra Librarian 3D Model Ultra Librarian MLG0402P0N4BT000 CAD Model

Description

The TDK Corporation 1327833-MLG0402P0N4BT000 is a fixed inductor that is used in multilayer applications.

  • Shielding: Unshielded
  • Size/Dimension: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Inductance: 0.4 nH
  • Height Seated (Max): 0.009" (0.22mm)
  • Standard Package: 20,000
  • Mounting: Surface-mountable
  • Tolerance: ±0.1nH
  • Material-Core: Non-magnetic
  • Q @ Freq: None
  • Self-Resonant Frequency: 10GHz
  • DC Resistance (DCR): 200mOhm Max
  • Supplier Device Package: 01005 (0402 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • ECCN: EAR99
  • Current Rating: 350 mA
  • Inductance Frequency-Test: 500 MHz
  • ROHS3 Compliant: Yes
