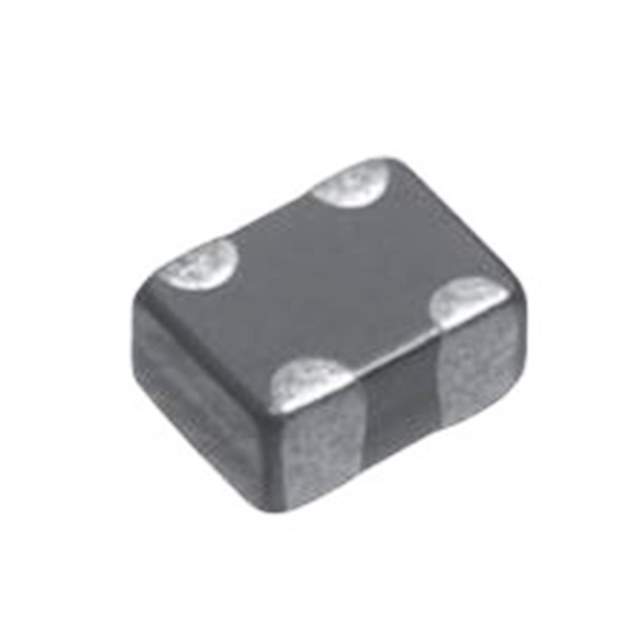

MCZ0806AH900L2TA0G Real Image
Same model may have multiple batches, images only for reference.

MCZ0806AH900L2TA0G

Part No MCZ0806AH900L2TA0G
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 2LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 90 Ohms at 100MHz
Current Rating (Maximum) 100mA
DC Resistance (DCR) (Maximum) 4Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Parts Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Maximum) 0.020" (0.50mm)
Manufacturer Package 0302 (0806 Metric), 4 Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 732544-MCZ0806AH900L2TA0G
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MCZ0806AH900L2TA0G CAD Model

Description

The TDK Corporation Signal Line Filter is a high-quality electronic component that is designed to provide excellent performance and reliability.

  • Mounting: Surface
  • Voltage Rating: 5V DC
  • Height: 0.020" (0.50mm) (Maximum)
  • Current Rating: 100mA (Maximum)
  • DC Resistance (DCR): 4Ohm
  • Package: 0302 (0806 Metric), 4 Lead
  • Temperature Range: -40°C to 85°C
  • Impedance: 90 Ohms @ 100MHz
  • Popularity: Popular
  • Supply and Demand: Sufficient
  • Manufacturer Pack Quantity: 1
