Same model may have multiple batches, images only for reference.

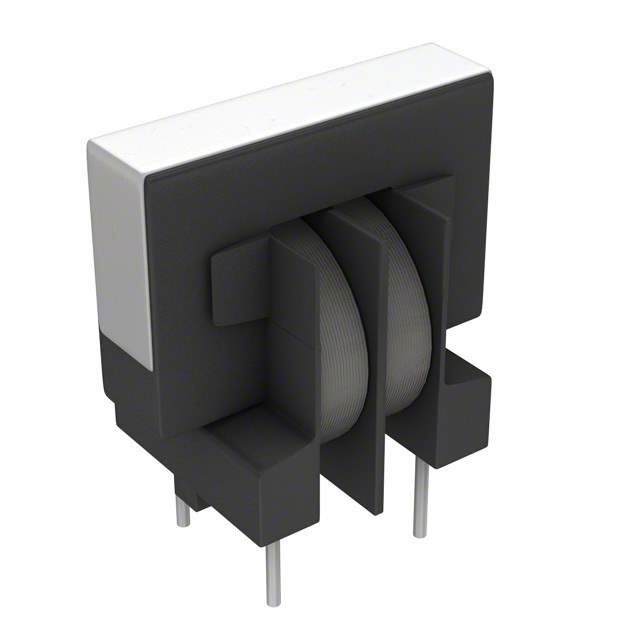

UF1717V-152Y0R6-01 Real Image
Same model may have multiple batches, images only for reference.

UF1717V-152Y0R6-01

Part No UF1717V-152Y0R6-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.5MH 600MA 2LN TH  /  1.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 550mOhm
Datasheet
UF1717V-152Y0R6-01 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TDK Corporation
Series UF
Package Bulk
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 1 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 550mOhm
Temperature Range - Operating -20°C ~ 120°C
Mounting Type Through Hole
Dimension 0.689" L x 0.433" W (17.50mm x 11.00mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10
Win Source Part Number 1174264-UF1717V-152Y0R6-01
Ultra Librarian 3D Model Ultra Librarian UF1717V-152Y0R6-01 CAD Model

Description

This common mode choke, part number 1174264-UF1717V-152Y0R6-01, falls under the category of filters.

  • Filter Type: Power Line
  • Height: 0.669" (17.00mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 1.5 mH @ 1 kHz
  • DC Resistance (DCR) (Max): 550mOhm
  • Current Rating (max): 600mA
  • Mounting: Through Hole
  • Package/Case: Vertical, 4 PC Pin
  • Temperature Range: -20°C ~ 120°C
  • Dimension: 0.689" L x 0.433" W (17.50mm x 11.00mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.8000
  • Manufacturer: TDK Corporation
  • Product Status: Obsolete
  • Approval Agency: None
