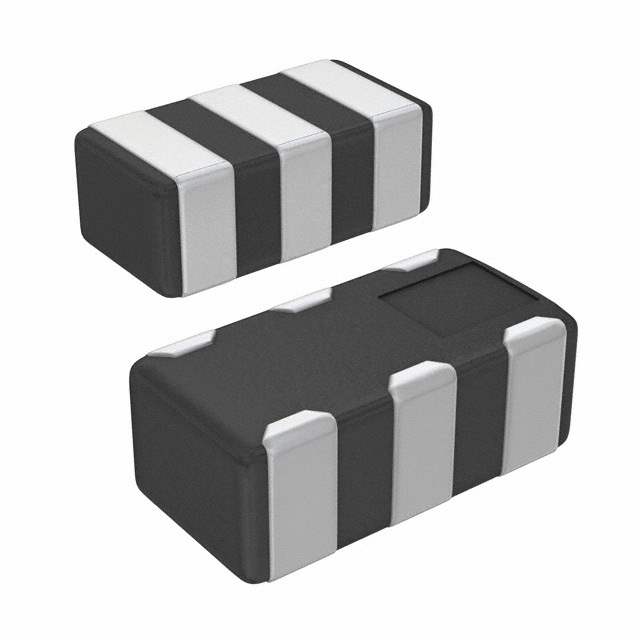

HHM2204SA1 Real Image
Same model may have multiple batches, images only for reference.

HHM2204SA1

Part No HHM2204SA1
Manufacturer TDK Corporation
Catalog RF Directional Coupler
Description COUPLER DIRECTIONAL DCS/TX
Datasheet
HHM2204SA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.71GHz to 1.785GHz
Coupling Factor -15 ± 1dB
Applications DCS
Insertion Loss 0.35dB
Isolation 25dB
Case / Package 0603
Win Source Part Number 001596-HHM2204SA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HHM2204SA1 CAD Model

Description

The TDK Corporation HHM2204SA1 coupler is a standard coupler type.

  • Frequency Range: 1.71GHz to 1.785GHz
  • Coupling Factor: -15 ± 1dB
  • Insertion Loss: 0.35dB
  • Isolation: 25dB
  • Application: DCS
  • Package: Reel
  • Case/Package Size: 0603
  • Supply and Demand Status: Balanced
  • Series: TDK Corporation RF/IF and RFID
  • Popularity: Market Popular
