Same model may have multiple batches, images only for reference.

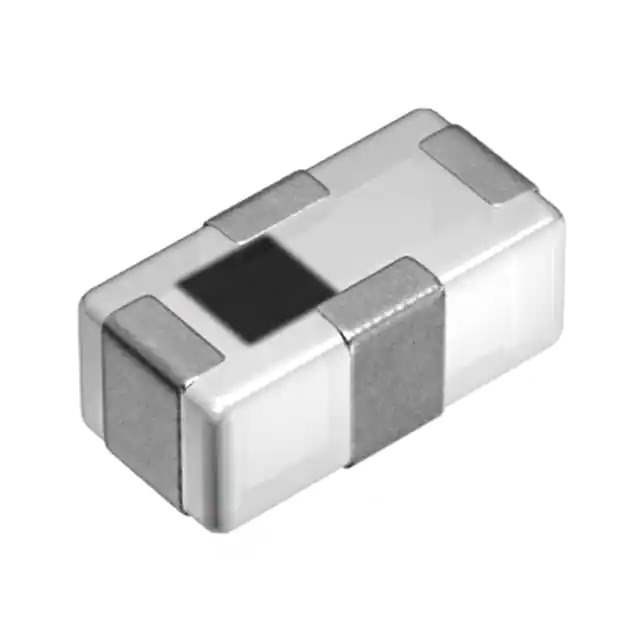

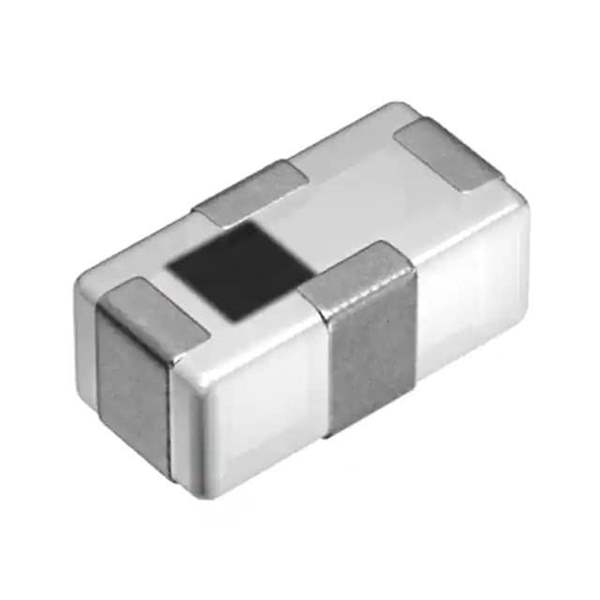

HHM1927A4 Real Image
Same model may have multiple batches, images only for reference.

HHM1927A4

Part No HHM1927A4
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 1.805-2.17GHZ 50/100 0402 / RF Balun 1.805GHz ~ 2.17GHz 50 / 100Ohm 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 1.805GHz ~ 2.17GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±15°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 920224-HHM1927A4
Ultra Librarian 3D Model Ultra Librarian HHM1927A4 CAD Model

Description

The HHM1927A4 is a balun component from TDK Corporation. The HHM1927A4 is an active product and is ECCN: EAR99 compliant.

  • Series: HHM
  • Category: RF and Wireless - Balun
  • Packaging: Tape & Reel
  • Standard Package Quantity: 10,000 pcs
  • Frequency Range: 1.805GHz to 2.17GHz
  • Impedance: 50/100 Ohm
  • Phase Difference: 180° ±15°
  • Insertion Loss: Maximum 1.0dB
  • Return Loss: Minimum 10dB
  • Mounting: Surface Mount
  • Package/Case: 0402 (1005 Metric)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.31.2000
  • Product Status: Active
