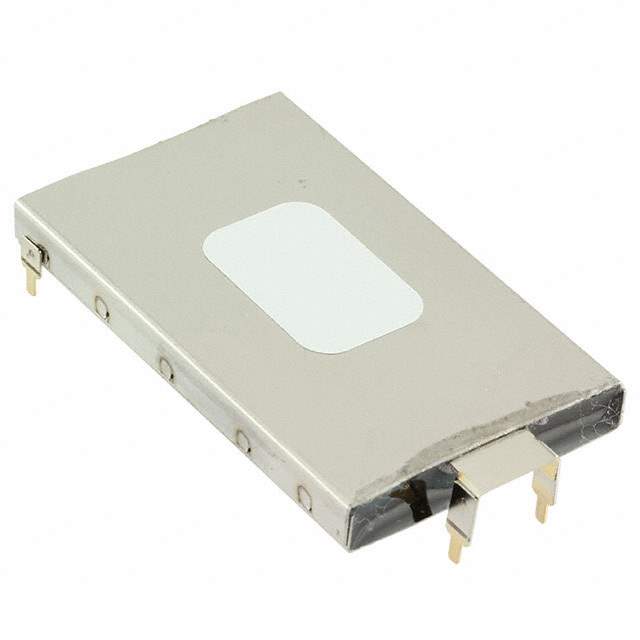

BZ02CA903ZAB Real Image
Same model may have multiple batches, images only for reference.

BZ02CA903ZAB

Part No BZ02CA903ZAB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 90MF -20% +80% 12V T/H / 90 mF (EDLC) Supercapacitor 12 V BZ02, 4 Lead 90mOhm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series BestCap® BZ
Package Bulk
Product Status Obsolete
Capacitance 90 mF
Tolerance -20%, +80%
Voltage - Rated 12 V
ESR (Equivalent Series Resistance) 90mOhm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case BZ02, 4 Lead
Size / Dimension 1.890" L x 1.181" W (48.00mm x 30.00mm)
Height - Seated (Max) 0.291" (7.40mm)
Temperature Range - Operating -20°C ~ 70°C
Standard Package 48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1351740-BZ02CA903ZAB
Ultra Librarian 3D Model Ultra Librarian BZ02CA903ZAB CAD Model

Description

The BestCap® BZ electric double-layer capacitor manufactured by KYOCERA AVX is a high-quality electronic component suitable for various applications.

  • Capacitance: 90 mF
  • Voltage Rating: 12V
  • Tolerance: -20%, +80%
  • ESR: 90mOhm
  • Package: BZ02, 4 Lead package
  • Mounting: through-hole technology
  • Height: 0.291" (7.40mm)
  • Standard Package: 48 pieces
  • Packaging: bulk packaging
  • Dimensions: 1.890" L x 1.181" W (48.00mm x 30.00mm)
  • Compliance: RoHS3 standards and is unaffected by REACH
