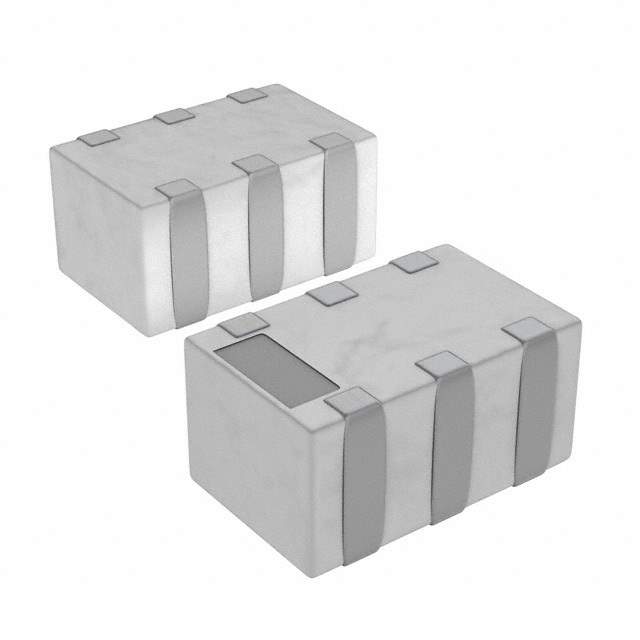

DPX202170DT-4049A1 Real Image
Same model may have multiple batches, images only for reference.

DPX202170DT-4049A1

Part No DPX202170DT-4049A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER
Datasheet
DPX202170DT-4049A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 824MHz to 960MHz / 1.71GHz to 2.17GHz
Low Band Attenuation (min / max dB) 15.00dB / 18.00dB
High Band Attenuation (min / max dB) 20.00dB / 23.00dB
Return Loss (Low Band / High Band) 20dB / 14dB
Mounting SMD (SMT)
Dimension 0805 (2012 Metric), 6 PC Pad
Win Source Part Number 1033988-DPX202170DT-4049A1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPX202170DT-4049A1 CAD Model

Description

The TDK Corporation RF/IF and RFID component is a popular choice among electronics enthusiasts.

  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1033988-DPX202170DT-4049A1
  • Product Status: currently active
  • Popularity: medium
  • Supply and Demand: balanced
  • Application: RF/IF and RFID
  • Mounting Type: surface mount
  • Dimension: 0805 (2012 Metric) with 6 PC pads
  • Frequency Range (Low Band): 824MHz to 960MHz
  • Frequency Range (High Band): 1.71GHz to 2.17GHz
  • Low Band Attenuation: 15.00dB to 18.00dB
  • High Band Attenuation: 20.00dB to 23.00dB
  • Return Loss (Low Band): 20dB
  • Return Loss (High Band): 14dB
