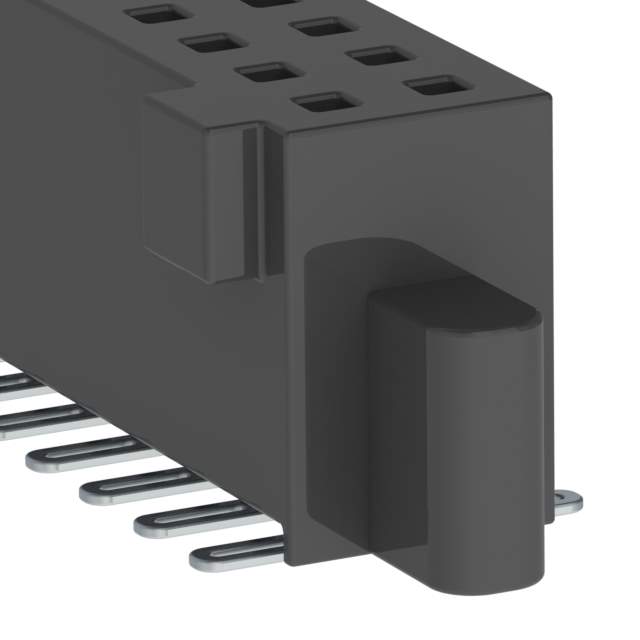

The Samtec Inc. Tiger Eye™ SFM series SFM-135-02-H-D-P-TR is a rectangular connector with headers, receptacles, and female sockets.

• Positions: 70 positions with a pick and place feature.
• Connector Type: receptacle.
• Contact Type: female socket.
• Positions Loaded: All positions are loaded with two rows.
• Termination: solder.
• Fastening Type: push-pull.
• Package: tape & reel (TR).
• Contact Material: beryllium copper.
• Voltage Rating: 250VAC.
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm.
• Material Flammability Rating: UL94 V-0.
• Insulation Material: liquid crystal polymer (LCP).
• Style: board to board or cable with a pitch of 0.050" (1.27mm).
• Contact Finish for Mating: gold with a thickness of 30.0µin (0.76µm).
• Contact Finish for Post: gold with a thickness of 3.00µin (0.076µm).
• Insulation Color: black.
• Row Spacing for Mating: 0.050" (1.27mm).
• Insulation Height: 0.185" (4.70mm).
• Contact Shape: square.
• Temperature Range for Operating: -55°C ~ 125°C.
• MSL Level: 1 (Unlimited).
• HTSUS: 8536.69.4040.
• Base Product Number: SFM-135.
