Same model may have multiple batches, images only for reference.

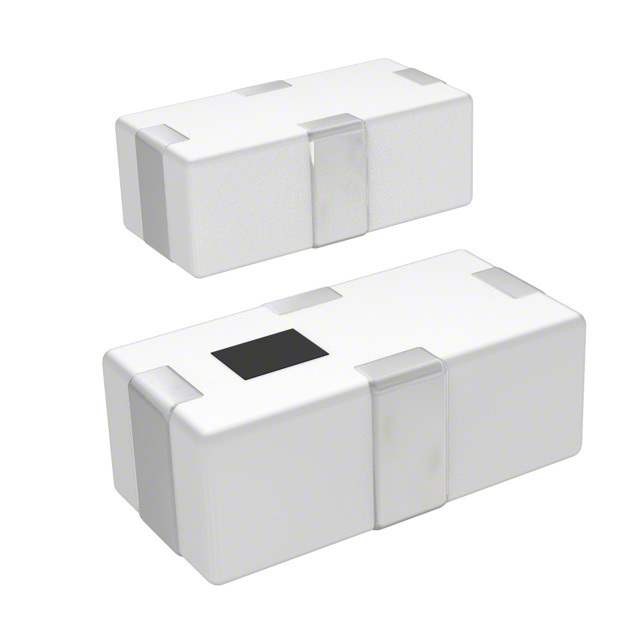

DPX165850DT-8117A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165850DT-8117A1

Part No DPX165850DT-8117A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER 2.4/5GHZ WLAN
Datasheet
DPX165850DT-8117A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 824MHz to 960MHz / 1.71GHz to 2.17GHz
Low Band Attenuation (min / max dB) 15.00dB / 19.00dB
High Band Attenuation (min / max dB) 20.00dB / 24.00dB
Return Loss (Low Band / High Band) 21dB / 20dB
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 4 PC Pad
Win Source Part Number 080619-DPX165850DT-8117A1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DPX165850DT-8117A1 CAD Model

Description

Product Overview

The DPX165850DT-8117A1 is a high-efficiency, versatile component aimed at delivering superior performance in diverse electronic systems.

Features and Benefits

  • Energy Efficiency: Optimized for low power consumption without compromising on capability.
  • High-Performance Filtering: Provides excellent noise suppression and signal clarity.
  • Reliability: Guarantees operational stability under various environmental conditions.

Applications

  • Medical Equipment
  • Telecommunication Infrastructure
  • Embedded Systems

Choose the DPX165850DT-8117A1 for its unmatched efficiency and reliable operational capabilities.
