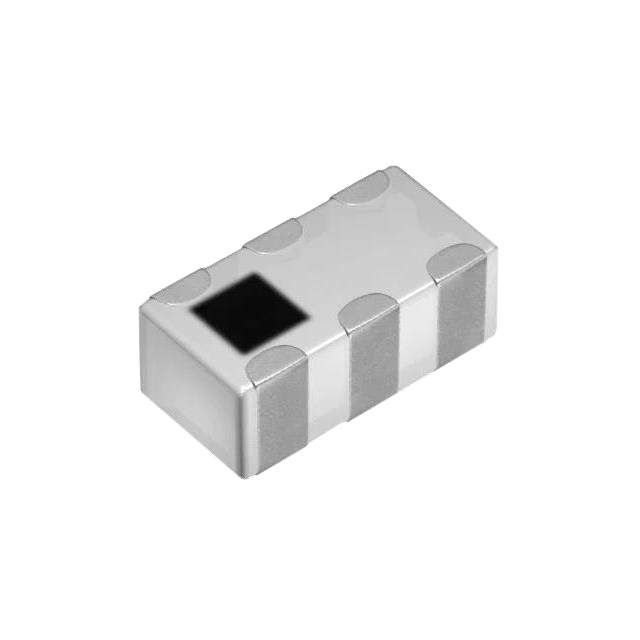

DEA162500LT-5033F1 Real Image
Same model may have multiple batches, images only for reference.

DEA162500LT-5033F1

Part No DEA162500LT-5033F1
Manufacturer TDK Corporation
Catalog RF Filters
Description MULTILAYER LPF FOR 2400-2500MHZ / 2.45GHz Center Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.8dB 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Low Pass
Insertion Loss 0.8dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 6 PC Pad
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-DEA162500LT-5033F1CT,445-DEA162500LT-5033F1TR,445-DEA162500LT-5033F1DKR
Standard Package 4,000
Win Source Part Number 1005137-DEA162500LT-5033F1
Ultra Librarian 3D Model Ultra Librarian DEA162500LT-5033F1 CAD Model

Description

The DEA162500LT-5033F1 is a low pass RF filter from TDK Corporation.

  • Frequency: 2.45GHz center
  • Insertion Loss: 0.8dB
  • Filter Type: Low Pass
  • Bandwidth: 100MHz
  • Package/Case: 0603 (1608 Metric), 6 PC Pad
  • Dimensions: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.028" (0.70mm)
  • Ripple: -
  • Packaging: Tape & Reel
  • Standard Package: 4,000
