Same model may have multiple batches, images only for reference.

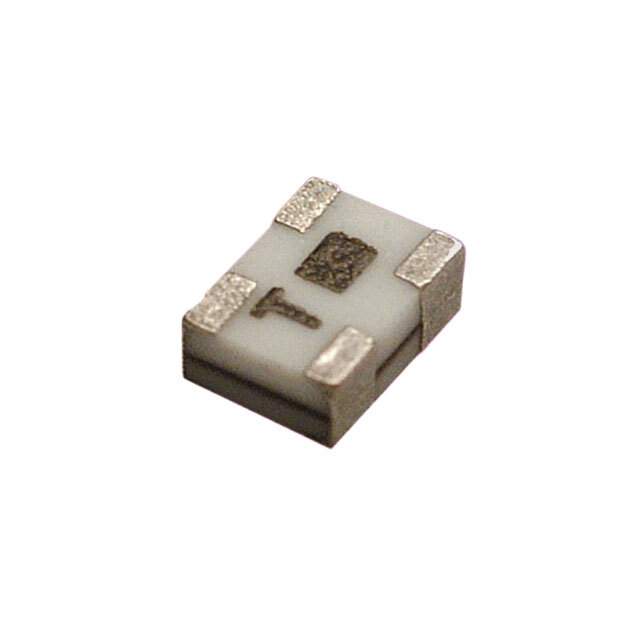

LP0805A1842AWTR Real Image
Same model may have multiple batches, images only for reference.

LP0805A1842AWTR

Part No LP0805A1842AWTR
Manufacturer AVX Corporation
Catalog RF Filters
Description LOW PASS FILTER 1842MHZ 0805 SMD
Datasheet
LP0805A1842AWTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Frequency 1.843GHz Center
Bandwidth 75MHz
Filter Type Low Pass
Insertion Loss 0.3dB
Mounting SMD (SMT)
Dimension 0.080" L x 0.061" W (2.03mm x 1.55mm)
Height (Max) 0.044" (1.12mm)
Win Source Part Number 1056072-LP0805A1842AWTR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LP0805A1842AWTR CAD Model

Description

The AVX Corporation LP0805A1842AWTR is a low pass filter with a center frequency of 1.843GHz and a bandwidth of 75MHz.

  • Center Frequency: 1.843GHz
  • Bandwidth: 75MHz
  • Insertion Loss: 0.3dB
  • Packaging: Reel - TR
