Same model may have multiple batches, images only for reference.

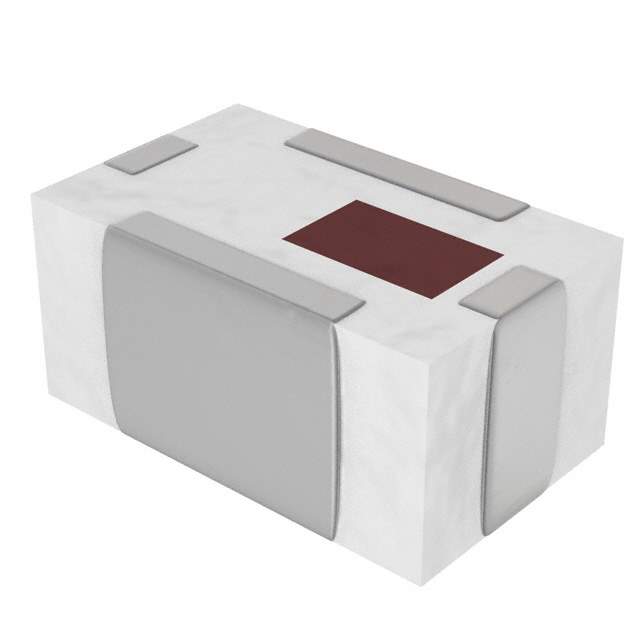

2450BP15P0100E Real Image
Same model may have multiple batches, images only for reference.

2450BP15P0100E

Part No 2450BP15P0100E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description BAND PASS FILTER 2.45 GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 1.3dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
Win Source Part Number 1003245-2450BP15P0100E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2450BP15P0100E CAD Model

Description

Johanson Technology Inc. has manufactured the 1003245-2450BP15P0100E electronic component, which is an active filter with a 2.45GHz center frequency and a bandwidth of 100MHz.

  • Center Frequency: 2.45GHz
  • Bandwidth: 100MHz
  • Insertion Loss: 1.3dB
  • Category: Filters
  • Supply and Demand Status: Balanced
  • Packaging: Reel
  • Mounting: SMD (SMT)
  • Height (max): 0.041" (1.05mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
