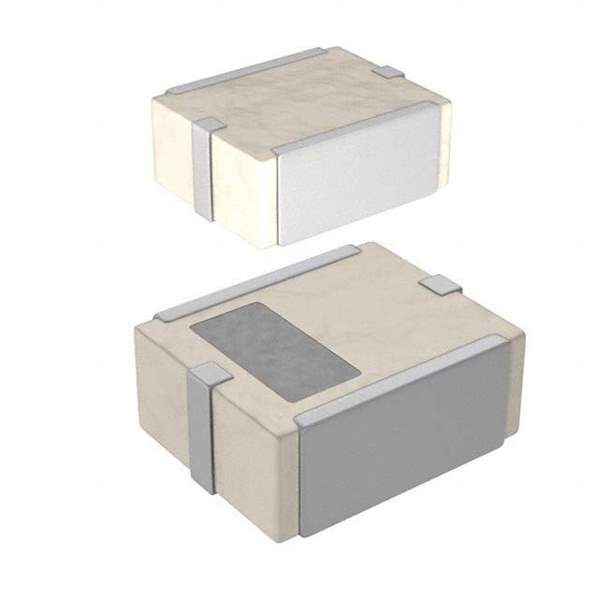

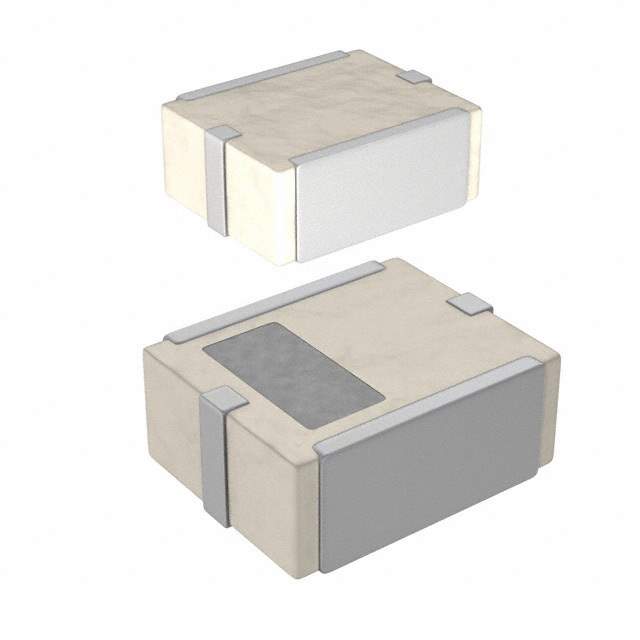

DEA252450BT-7014D1

Part No DEA252450BT-7014D1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 2.4GHZ 1008 SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 1.2dB
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max) 0.039" (1.00mm)
Win Source Part Number 1032828-DEA252450BT-7014D1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA252450BT-7014D1 CAD Model

Description

The TDK Corporation DEA252450BT-7014D1 is a band pass filter designed for use in electronic devices.

  • Center Frequency: 2.45GHz
  • Bandwidth: 100MHz
  • Insertion Loss: 1.2dB
  • Height: 0.039" (1.00mm)
  • Packaging: Reel
  • Mounting: Surface-Mount Technology (SMT)
