Same model may have multiple batches, images only for reference.

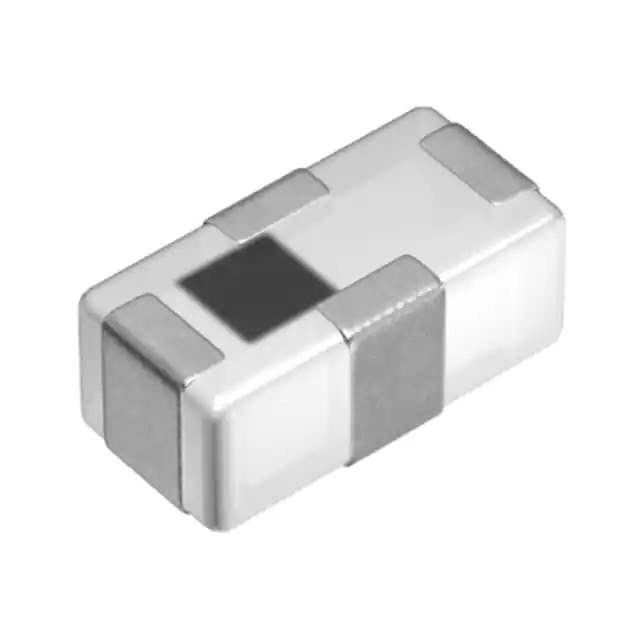

DEA102700LT-6307A2 Real Image
Same model may have multiple batches, images only for reference.

DEA102700LT-6307A2

Part No DEA102700LT-6307A2
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 2.45GHZ 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Low Pass
Insertion Loss 0.45dB
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 4 PC Pad
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.016" (0.40mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 584362-DEA102700LT-6307A2
Ultra Librarian 3D Model Ultra Librarian DEA102700LT-6307A2 CAD Model

Description

The 584362-DEA102700LT-6307A2 is an RF filter from TDK Corporation.

  • Series: DEA
  • Filter Type: Low Pass
  • Center Frequency: 2.45GHz
  • Bandwidth: 100MHz
  • Insertion Loss: 0.45dB
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Mounting Type: Surface Mount
  • Manufacturer: TDK Corporation
  • Package: Tape & Reel
  • Package Quantity: 10,000 pcs
