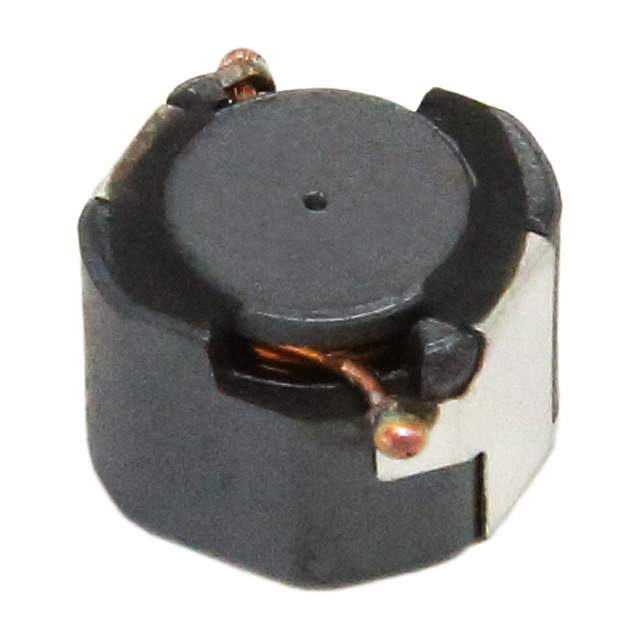

CLF6045T-1R0N Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-1R0N

Part No CLF6045T-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite
Datasheet
CLF6045T-1R0N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 4.5A
Current - Saturation 5A
Shielding Shielded
DC Resistance (DCR) 14.3 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1161889-CLF6045T-1R0N
Manufacturer Homepage www.tdk.com
Family Name CLF
ECCN EAR99
Country of Origin United States of America
Halogen Free Unknown
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CLF6045T-1R0N CAD Model

Description

The CLF6045T-1R0N inductor from TDK Corporation is a wirewound nonstandard package component that offers a 1μH inductance and can handle a current rating of up to 4.5A.

  • Inductance: 1μH
  • Current Rating: 4.5A
  • Shielded: Yes
  • Core Material: Ferrite
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±30%
  • Dimensions: 0.244" L x 0.232" W (6.20mm x 5.90mm)
  • DC Resistance (DCR): 14.3 mOhm Max
  • Applications: inductors, coils, and chokes
