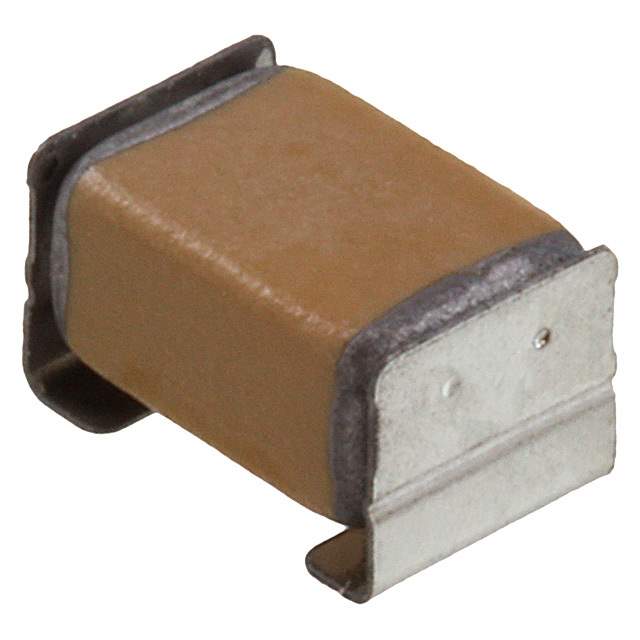

The CKG45KX7R1C226MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed for general-purpose applications requiring stable capacitance and reliable performance. MLCCs are widely used in electronic circuits for decoupling, bypass, filtering, and smoothing.

Applications

• Decoupling: Provides a local charge reservoir to reduce noise and voltage fluctuations in digital circuits, microcontrollers, and other integrated circuits.
• Bypass: Filters out high-frequency noise by shunting it to ground, preventing interference with sensitive circuit components.
• Filtering: Used in filter circuits to selectively pass or block certain frequencies, such as in power supplies or signal processing circuits.
• General-Purpose Applications: Suitable for a wide range of general-purpose applications where a stable and reliable capacitance is required.

Features

• High Capacitance Value: Features a capacitance of 22µF (microfarads), suitable for applications requiring a significant amount of charge storage.
• Voltage Rating: Rated for 16V, making it appropriate for many low-voltage applications.
• X7R Dielectric: X7R dielectric offers stable performance over a wide temperature range (-55°C to +125°C), with minimal capacitance variation.
• Small Size: Compact size allows for high-density circuit board designs.
• High Reliability: TDK capacitors are known for their robust construction and long lifespan.

Benefits

• Improved Circuit Stability: Provides stable voltage and reduces noise, leading to improved circuit performance and reliability.
• Reduced Interference: Filters out unwanted frequencies and prevents interference in sensitive components, ensuring signal integrity.
• Compact Design: Small size enables high-density circuit designs and miniaturization of electronic devices.
• Wide Operating Temperature Range: Maintains stable performance across a wide temperature range, making it suitable for use in harsh environments.
• Long Lifespan: Offers a long operating lifespan, ensuring long-term reliability of electronic devices.

Technical Specifications

• Capacitance: 22µF
• Capacitance Tolerance: ±20%
• Voltage Rating: 16V
• Dielectric Material: X7R
• Temperature Coefficient: ±15% (from -55°C to +125°C)
• Operating Temperature Range: -55°C to +125°C
• Termination: Surface Mount (SMD)
• Size Code: A standard EIA size code (e.g., 1210, 1812) will define the physical dimensions of the capacitor. Consult the datasheet for the precise dimensions.

Note: Always refer to the official TDK datasheet for the most accurate and up-to-date specifications and application guidelines.
