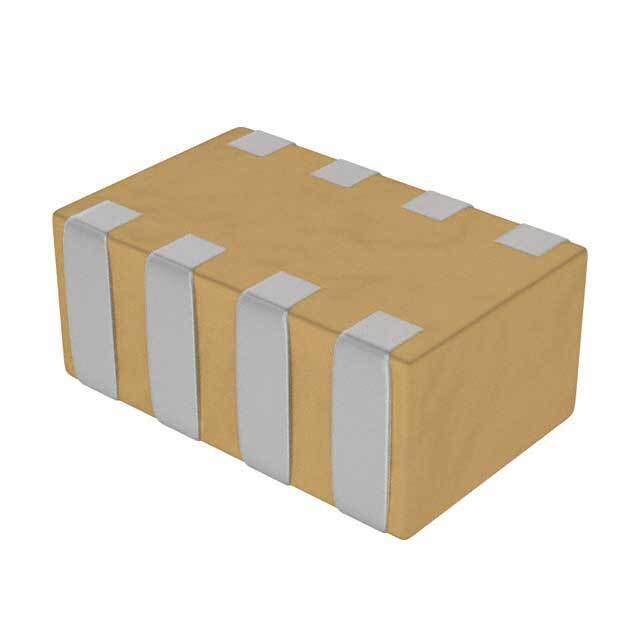

The TDK CKCA43X7R1H103MT010N is a multilayer ceramic capacitor (MLCC) designed for general-purpose applications. It features a stable X7R dielectric, making it suitable for use in circuits where capacitance variation with temperature is a concern. The capacitor is designed for surface mount technology (SMT) and offers reliable performance in a compact package.

Applications

• Power Supplies: Used for filtering and decoupling in power supply circuits.
• Consumer Electronics: Found in smartphones, tablets, and other electronic devices.
• Automotive Electronics: Employed in automotive control systems and other electronic modules.
• Industrial Equipment: Used in industrial control systems and automation equipment.
• Medical Devices: Integrated into medical equipment for various circuit functions.

Features

• X7R Dielectric: Provides stable capacitance over a wide temperature range.
• Surface Mount Technology (SMT): Facilitates automated assembly, reducing manufacturing costs.
• Compact Size: Allows for high-density mounting on PCBs.
• High Reliability: Designed for long-lasting performance in demanding applications.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Stable Performance: The X7R dielectric ensures stable capacitance over temperature, improving circuit performance.
• Cost Effective: SMT assembly reduces manufacturing costs.
• Space Saving: The compact size allows for more components to be placed on the PCB.
• Long-Lasting Performance: High reliability ensures long-term performance.
• Environmentally Friendly: RoHS compliance ensures the capacitor meets environmental standards.

Additional Details

The CKCA43X7R1H103MT010N capacitor has a capacitance value of 10nF (103) and a voltage rating determined by the '1H' code (typically 50V). The '43' likely refers to the case size. The 'MT010N' likely indicates the packaging type and tolerance. Further details on voltage rating, capacitance tolerance, and operating temperature can be found in the official TDK datasheet.
