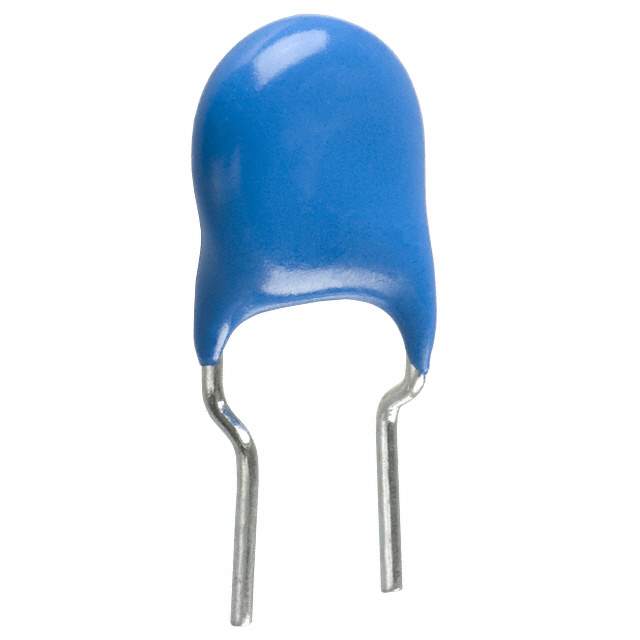

CK45-B3FD101KYNNA Real Image
Same model may have multiple batches, images only for reference.

CK45-B3FD101KYNNA

Part No CK45-B3FD101KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 3KV RADIAL
Datasheet
CK45-B3FD101KYNNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Bulk
Status Active
Capacitance 100pF
Tolerance ±10%
Voltage Rating 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C to 105°C
Features High Voltage
Applications General Purpose
Mounting Through Hole
Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
Win Source Part Number 124446-CK45-B3FD101KYNNA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD101KYNNA CAD Model

Description

CK45-B3FD101KYNNA Ceramic Capacitor

The CK45-B3FD101KYNNA is a high-capacitance ceramic capacitor aimed at enhancing power efficiency and stability in various electronic system designs.

Features and Benefits:

  • Capacitance: 100pF
  • Voltage Rating: 500 VAC
  • Outstanding dielectric properties
  • Efficient power management
  • Excellent surge current handling

Applications:

  • Microcontroller units
  • Battery management systems
  • Smart home devices
  • Renewable energy systems

Additional Details: Engineered for high voltage operations, this capacitor minimizes ESR, leading to improved electronic performance and efficiency.
